Gear Motor for Chemical Powder Processing

Selecting the right gear motor for chemical powder processing is essential for reliable mixing, conveying and dosing. A mixer may start with a full vessel, a screw conveyor may encounter compacted material, and a feeder may need to maintain a stable output despite changing bulk density. In each case, the motor alone is only part of the solution. The gearbox must convert motor speed into the torque, output speed and mechanical stability required by the machine.

NUODUN supplies helical gear reducer motors, worm gear reducers, planetary reducers and customized power-transmission solutions for industrial equipment. By matching the gearbox configuration to the actual material, load cycle and installation arrangement, machine builders can improve process consistency while reducing overloads and avoidable downtime.

Where a Gear Motor for Chemical Powder Processing Is Used

A typical powder processing line contains several driven machines, and each one presents a different load profile:

• Ribbon, paddle and ploughshare mixers: require high starting torque and stable low-speed rotation, especially when starting under load.
• Screw conveyors and dosing screws: need continuous torque, controlled speed and sufficient service margin for material compaction or restart conditions.
• Rotary valves and feeders: depend on repeatable low-speed output to regulate material flow.
• Agitators and chemical reactors: may experience changing viscosity and radial or axial loads as the process develops.
• Bucket elevators, dryers and packaging lines: require reliable continuous operation and a mounting arrangement suited to limited plant space.

Because these machines do not share the same duty cycle, selecting a gearbox by motor power alone can produce an unreliable drive. A gear motor for chemical powder processing must also be evaluated for output torque, starting condition, shock load, thermal capacity and shaft loading.

Why the Gearbox Matters in Powder Handling

High starting torque

Settled powder can create a much higher breakaway load than the normal running load. This is common in loaded mixers and screw conveyors that stop during production. The reducer and motor should therefore be sized for both operating torque and start-up torque, with an appropriate service factor.

Stable low-speed operation

Mixing quality and dosing accuracy often depend on a consistent output speed. A correctly selected reduction ratio provides usable torque at the shaft while a variable-frequency drive can be used when the process requires an adjustable speed range.

Dust and chemical exposure

Fine powder can enter seals, contaminate lubricant and restrict cooling. Corrosive chemicals or washdown procedures may also affect housings, fasteners and surface coatings. The required enclosure, sealing system, lubricant and corrosion protection should be specified according to the site environment.

Continuous-duty reliability

Many conveying and blending lines operate for long periods. Gear efficiency, lubrication, ambient temperature and heat dissipation therefore influence gearbox life. A compact unit is useful only if it can handle the thermal load of the real operating cycle.

NUODUN Gearbox Options for Powder Processing Equipment

RSKF helical and bevel-helical gear reducer motors

NUODUN RSKF gear reducer motors are a strong starting point for ribbon blenders, paddle mixers, screw conveyors and larger feeders. Their modular inline, parallel-shaft and right-angle arrangements help designers adapt the drive to the machine layout. Helical gearing is particularly suitable where efficiency, smooth transmission and continuous operation are priorities.

RV worm gear reducers and gear motors

NUODUN RV worm gear reducers provide a compact right-angle drive for smaller feeders, rotary valves, auxiliary conveyors and space-limited mechanisms. They offer high reduction in a compact package. Because worm-drive efficiency and thermal performance vary with ratio and operating conditions, the selection should be checked against duty cycle and required output torque.

Z planetary gear reducers

For heavy-duty mixers or compact drives requiring high torque density, a NUODUN Z planetary gear reducer can be evaluated. Planetary gearing distributes load across multiple planet gears and is useful when installation space is limited relative to torque demand.

Customized gearbox and mounting solutions

Powder equipment frequently uses non-standard shafts, flanges, housings and mounting positions. NUODUN supports OEM and ODM customization, including gear ratio, torque range, input flange, output shaft, mounting interface, lubrication option and non-standard housing. This allows the drive to be integrated around the machine instead of forcing the machine builder to redesign the equipment around a catalogue unit.

How to Select a Gear Motor for Chemical Powder Processing

1. Define the driven machine. Record mixer type, screw diameter and length, operating speed, filling level and transmission arrangement.
2. Describe the powder. Include bulk density, particle characteristics, moisture, abrasiveness, flowability and any tendency to compact or cake.
3. Calculate operating and starting torque. Include acceleration, loaded starts, temporary blockage and process-related load changes.
4. Establish the duty cycle. Specify starts per hour, operating hours, ambient temperature and whether the machine runs continuously or intermittently.
5. Select ratio and output speed. Match the process speed without operating the motor outside its practical range.
6. Check shaft and bearing loads. Account for sprockets, pulleys, couplings, overhung loads and agitator forces.
7. Confirm the environment. Determine the required ingress protection, coating, sealing and lubricant compatibility.
8. Review safety requirements. Combustible dust may require hazardous-area equipment and a formal dust-hazard assessment. Consult the OSHA combustible dust guidance and the standards applicable to the installation. Explosion-proof or ATEX/IECEx requirements must be confirmed for the installation and supplied components rather than assumed from the gearbox type.

Application Example: Screw Conveyor Feeding a Powder Mixer

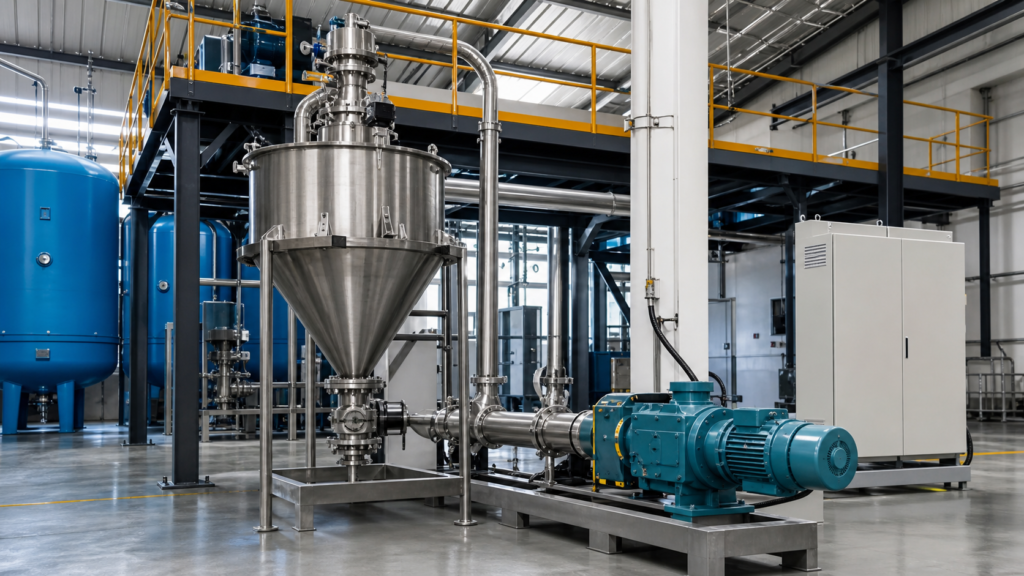

Consider a screw conveyor that transfers chemical powder into a batch mixer. During normal operation, the conveyor sees a relatively steady load. After an emergency stop, however, material can settle around the screw and substantially increase restart torque. Selecting the drive only from the normal running power can cause nuisance trips, overheating or premature gear wear.

A better approach is to calculate the loaded restart condition, select the gearbox service factor accordingly and verify the thermal rating for the planned operating time. An RSKF helical gear reducer motor can provide an efficient drive for continuous conveying, while a compact RV worm gear motor may suit a smaller dosing screw with intermittent operation. Where the mixer itself demands high torque in a restricted space, a planetary solution may be considered. The final choice depends on measured application data, not merely the machine name.

Information to Send NUODUN for Gearbox Selection

To receive a practical recommendation, provide the following information with your enquiry:

• machine type and application drawing;
• motor power and input speed;
• required output speed or reduction ratio;
• estimated running and peak torque;
• hours per day and starts per hour;
• mounting position, shaft direction and available installation space;
• ambient temperature, dust, corrosion and washdown conditions;
• required motor voltage, frequency, IP rating and hazardous-area standard;
• any special flange, shaft, coating or lubrication requirement.

Build a More Reliable Powder Processing Drive with NUODUN

The right gear motor for chemical powder processing is not simply the unit with the highest ratio or the largest motor. It is a matched system that delivers the required torque, speed, service life and environmental protection within the available space.

With RSKF helical gear reducer motors, RV worm gear reducers, Z planetary reducers and OEM/ODM engineering support, NUODUN can help equipment manufacturers develop drive solutions for powder mixers, screw conveyors, feeders and related process machinery.

Send NUODUN your operating data and installation drawing for a gearbox and gear motor recommendation tailored to your chemical powder processing system.
