NUODUN NDL Series Bevel Gear Ball Screw Jacks are the result of extensive engineering development, with the NUODUN team dedicating tens of months to design, validation, and more than one year of field-application testing. The outcome is a new generation of high-performance lifting units that deliver higher speed, higher load capacity, and superior positioning accuracy—within a more compact structure.

The NDL Series integrates precision-ground spiral bevel gears with high-efficiency ball screws, achieving exceptionally low input torque, high duty cycles, and rapid linear motion. The hardened spiral tooth bevel gear transmission allows high rotational efficiency and stable operation at elevated lifting speeds.

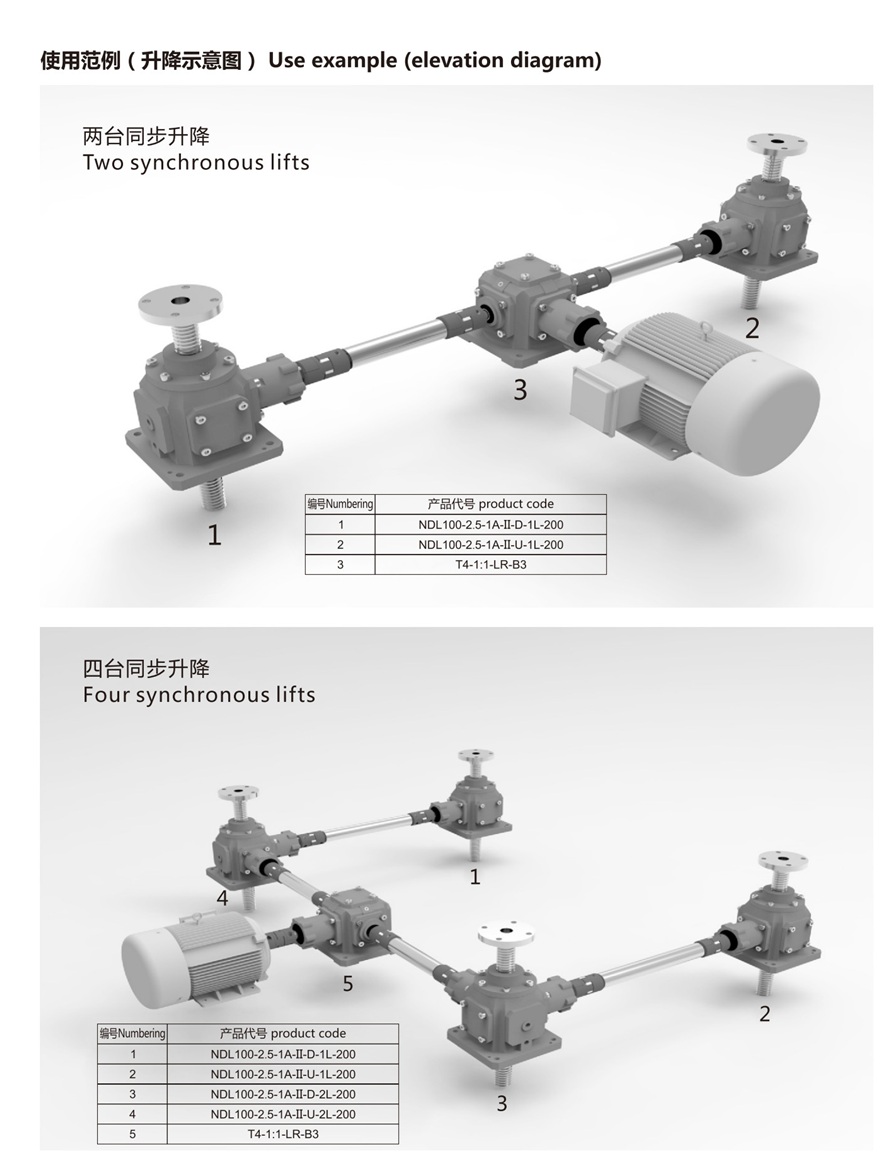

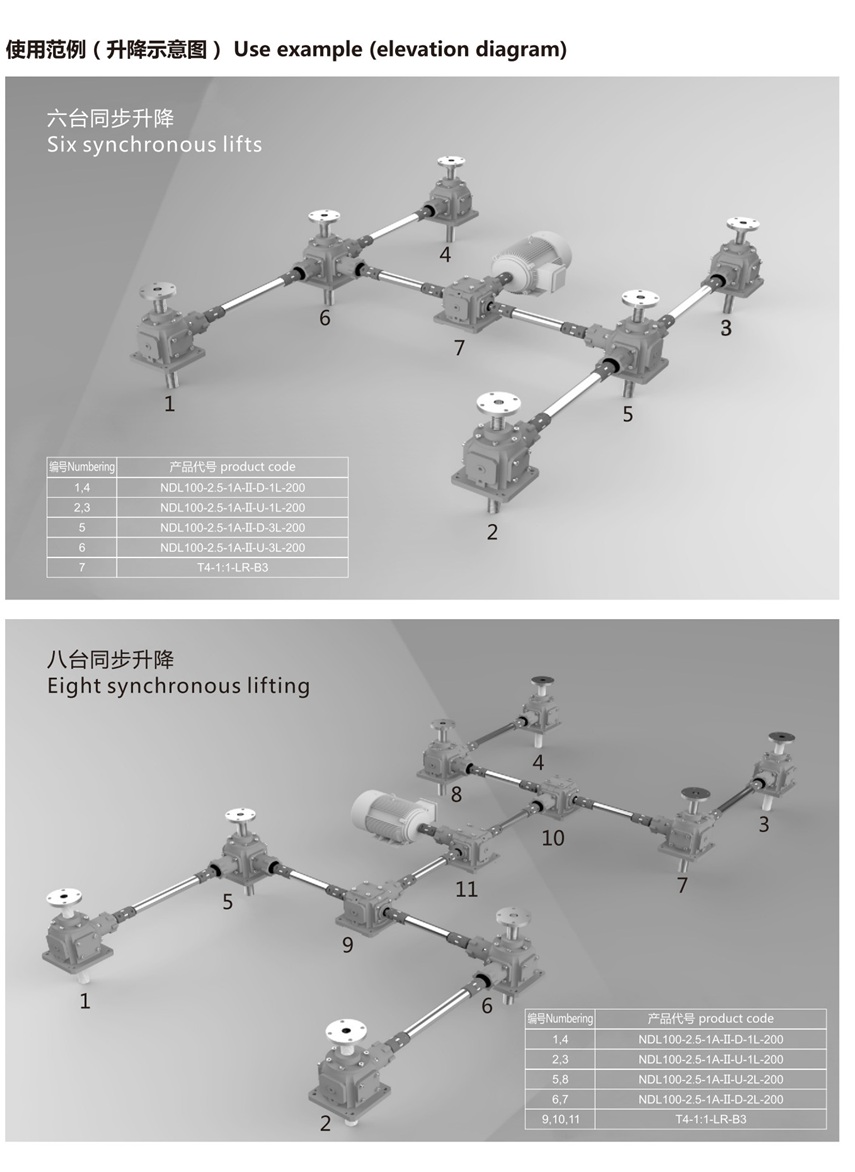

Engineered for modularity, NDL Screw Jacks can be used as single units or configured into multi-spindle systems with mechanical or electrical synchronization. This makes them ideal for demanding applications requiring synchronized lifting, precise positioning, and long service life.

---

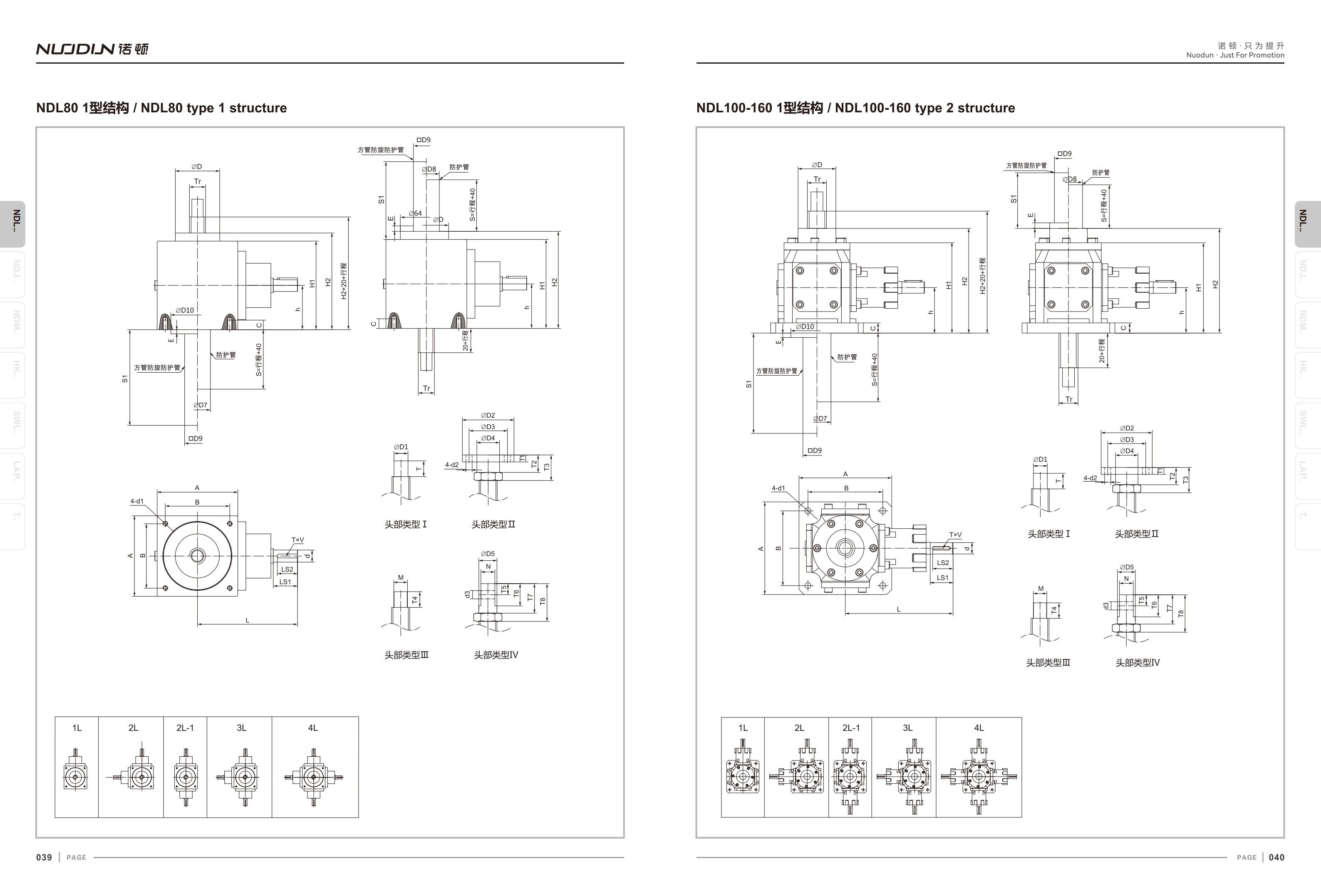

Types

Translating Type

The lifting shaft moves linearly through the gearbox while the integrated rotating nut drives motion. Ideal for applications requiring stable, controlled translation.

Rotating Type

The lift shaft rotates and moves the load via a traveling nut. Suitable for systems with long stroke requirements and high operational frequency.

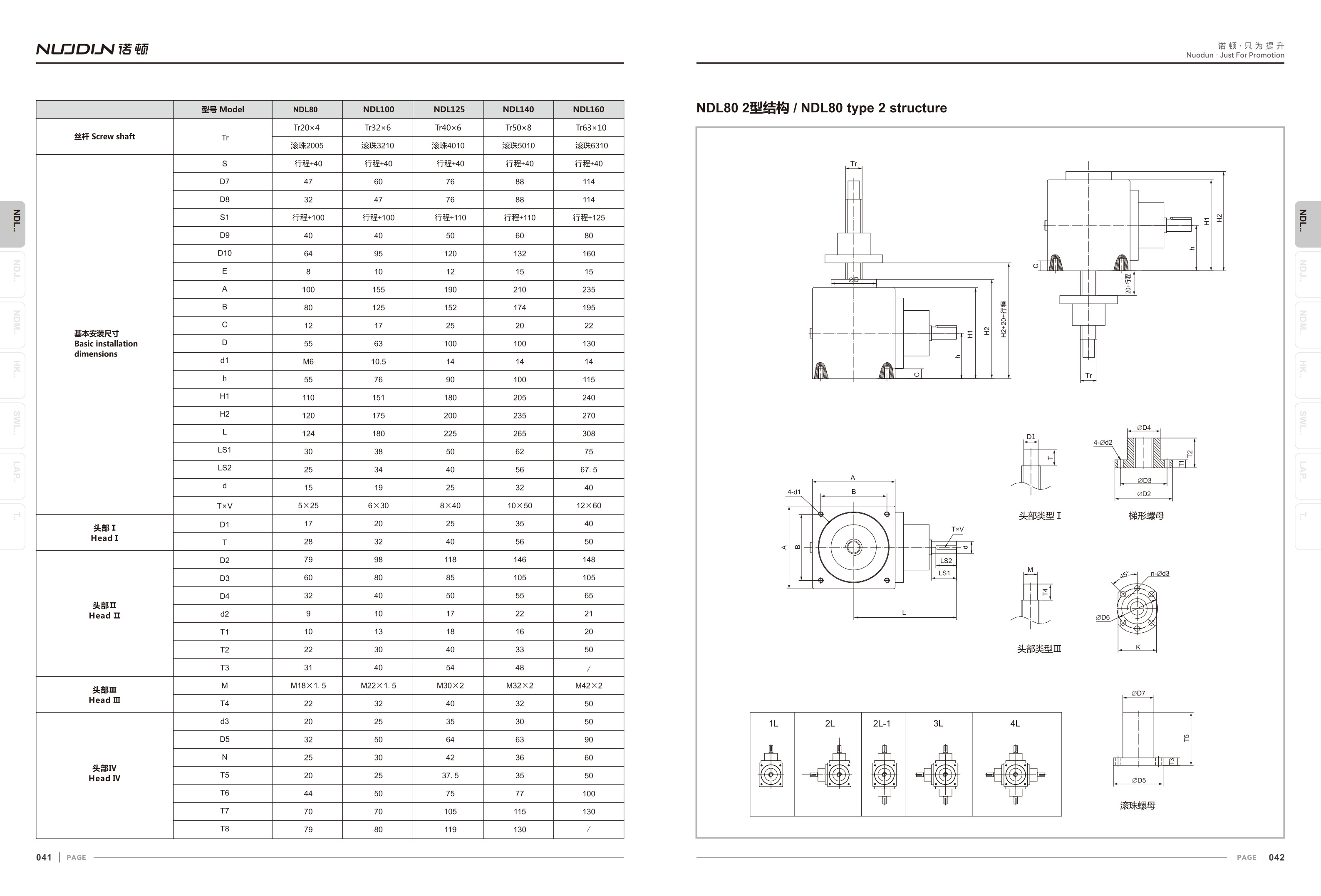

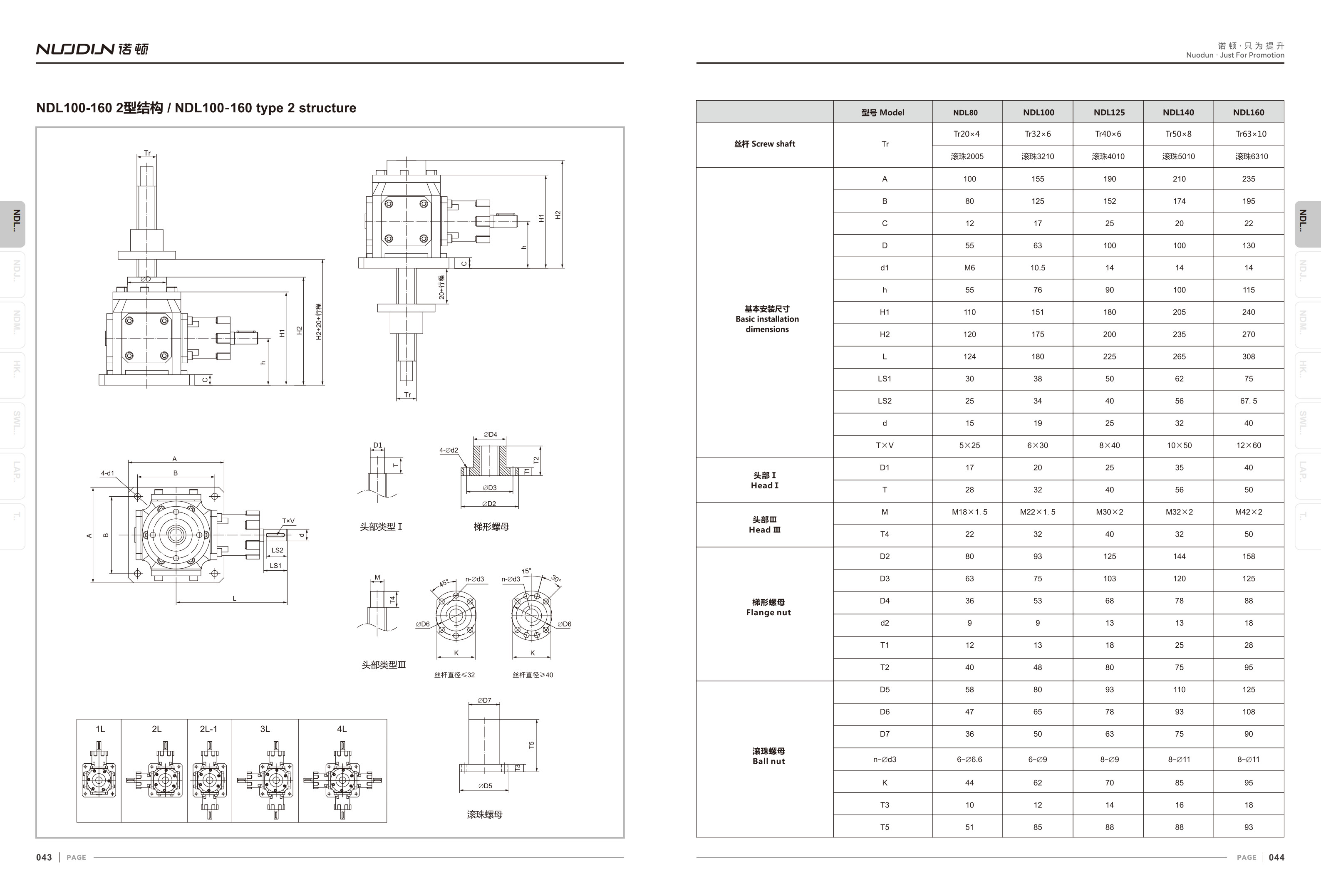

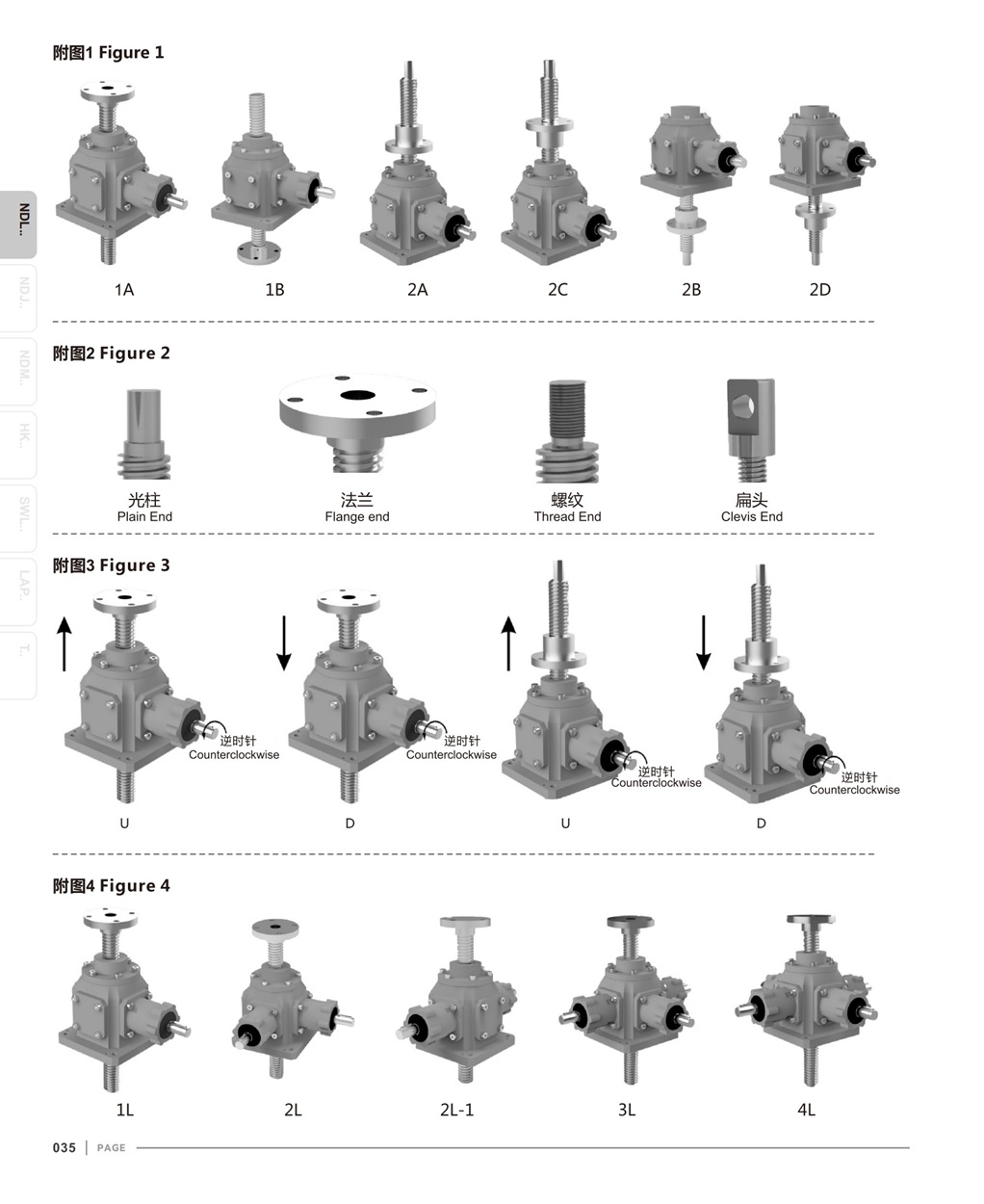

Keyed Translating Type

A built-in anti-rotation mechanism prevents the screw shaft from turning, ensuring pure linear motion. Recommended for applications that cannot provide external anti-rotation guides.

---

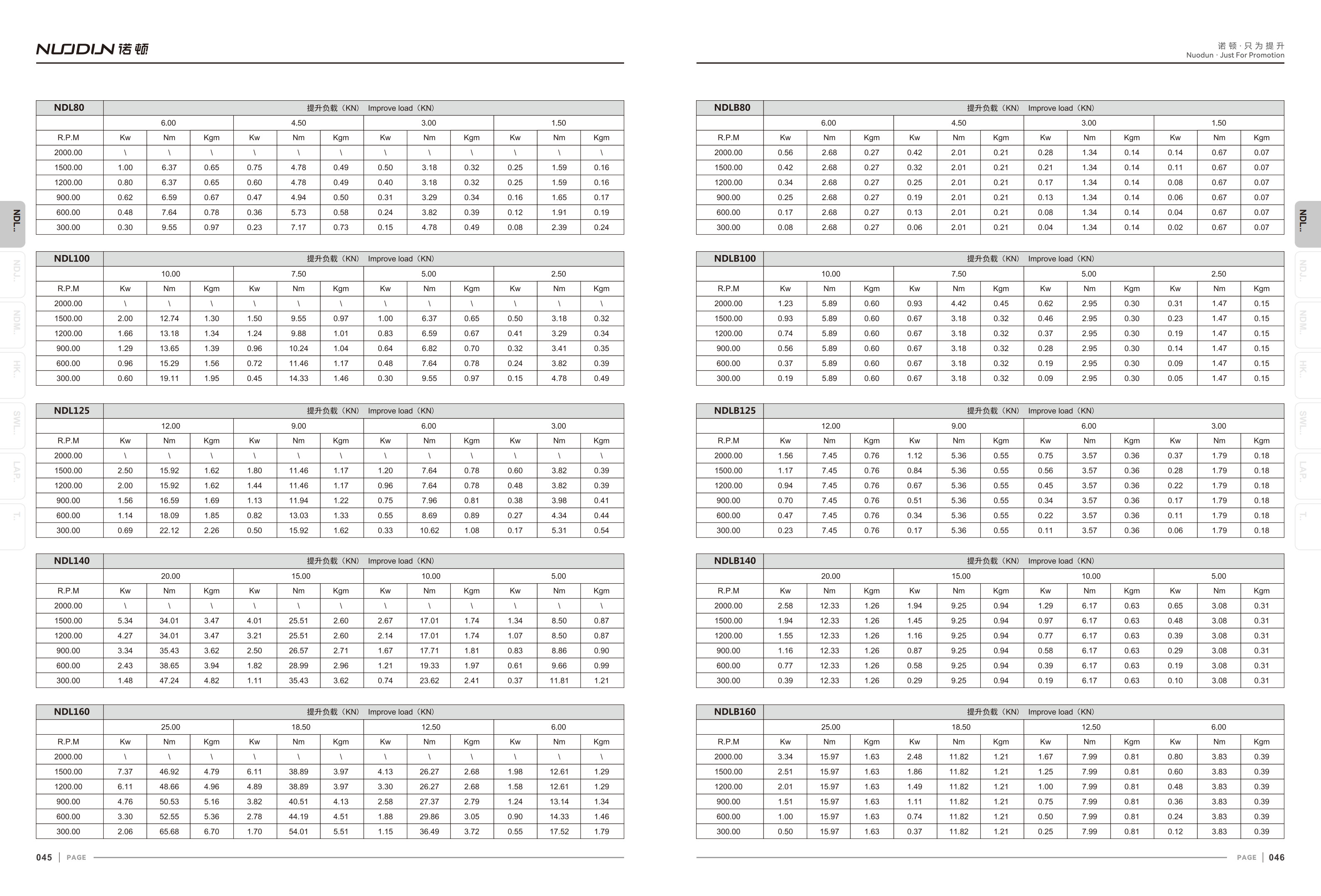

Key Features

1. High Efficiency Ball Screw Mechanism

• Minimal input torque required
• High load capacity with reduced friction
• Excellent repeatability and positioning accuracy

2. Spiral Bevel Gear Transmission

• Precision-ground bevel gears ensure smooth, high-speed operation
• Capable of higher lifting speeds and extended duty cycles
• Long-life, hardened gear surfaces

3. Compact and Robust Structure

• Smaller footprint compared to traditional screw jacks
• Higher performance without increasing installation space
• Available with multiple mounting configurations (1L, 2L, 3L, 4L, etc.)

4. Multiple Lifting Configurations

• Translating, rotating, and keyed translation options
• Screw head forms: plain end, flange end, threaded end, flat head
• Gear direction options (U/D type) to support upward or downward lift motion

5. Modular Multi-Spindle System Capability

• Simple integration with mitre gearboxes, couplings, and connecting shafts
• Mechanical synchronization driven by a single motor
• Electrical synchronization available for low-noise, flexible layouts

6. High Customizability for Industrial Applications

• Configurable speed ratios (2.5, 3)
• Stroke lengths tailored to project requirements
• Optional anti-rotation (F) and protective covers (Z/X/Q)

7. Superior Installation Flexibility

• Upward or downward screw orientation
• Multiple screw-moving and nut-moving layouts (1A, 1B, 2A, 2B, 2C, 2D)
• Suitable for vertical or horizontal mounting
