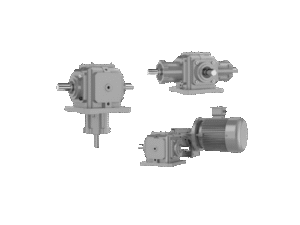

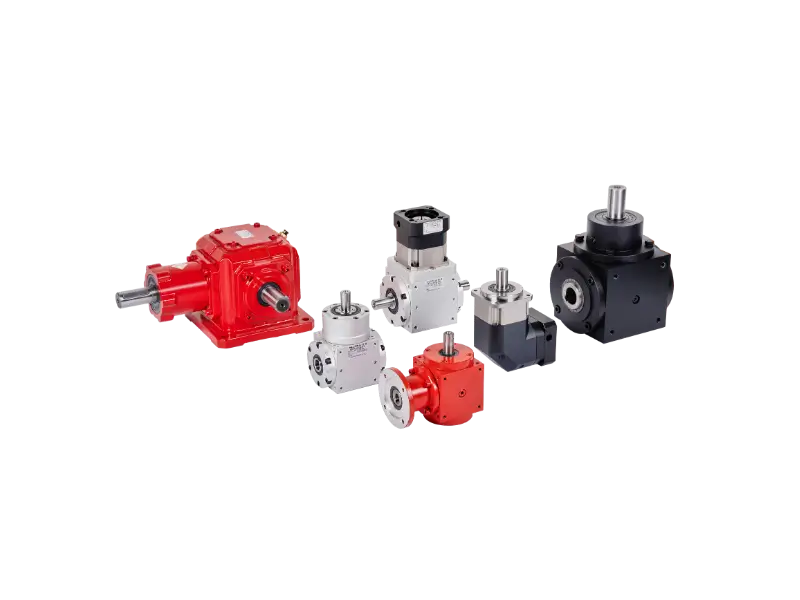

NUODUN Steering Gear Series (T Series Spiral Bevel Gearbox) is a high-precision right-angle transmission device designed for applications requiring smooth, reliable torque transfer and compact installation. Built with spiral bevel gears, the T Series delivers extremely stable operation, low noise, minimal vibration, and high transmission efficiency up to 98%.

The product line offers standardized ratios (1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1) and supports multiple shaft configurations including single input, dual input, single output, or double output. With robust housing, optimized gear geometry, and high-quality bearings, the T Series handles high torque loads and supports both forward and reverse rotation while maintaining long service life.

This series is widely used in conveyor systems, packaging equipment, material-handling machinery, automation lines, and various industrial transmission systems that require 90-degree mechanical power transfer.

---

Features

• High-Efficiency Spiral Bevel Gears
  Precision-machined gears ensure up to 98% transmission efficiency, low noise, low heat, and stable rotation.
• Multiple Transmission Ratios
  Standardized ratios from 1:1 to 5:1 suitable for a wide variety of mechanical configurations.
• Flexible Shaft Configurations
  • One input shaft
  • Two input shafts
  • Unilateral output shaft
  • Double-side output shaft
• Forward & Reverse Operation
  Spiral bevel gear design supports smooth bidirectional rotation.
• Low Noise, Low Vibration
  Optimized geometry ensures stable running under medium and heavy loads.
• Compact & Durable Construction
  Industrial-grade housing and high-strength bearings deliver long-term reliability.


---

Parameter Table

Note: Values below summarize the T Series Transmission Capacity (Fr(N)) table.

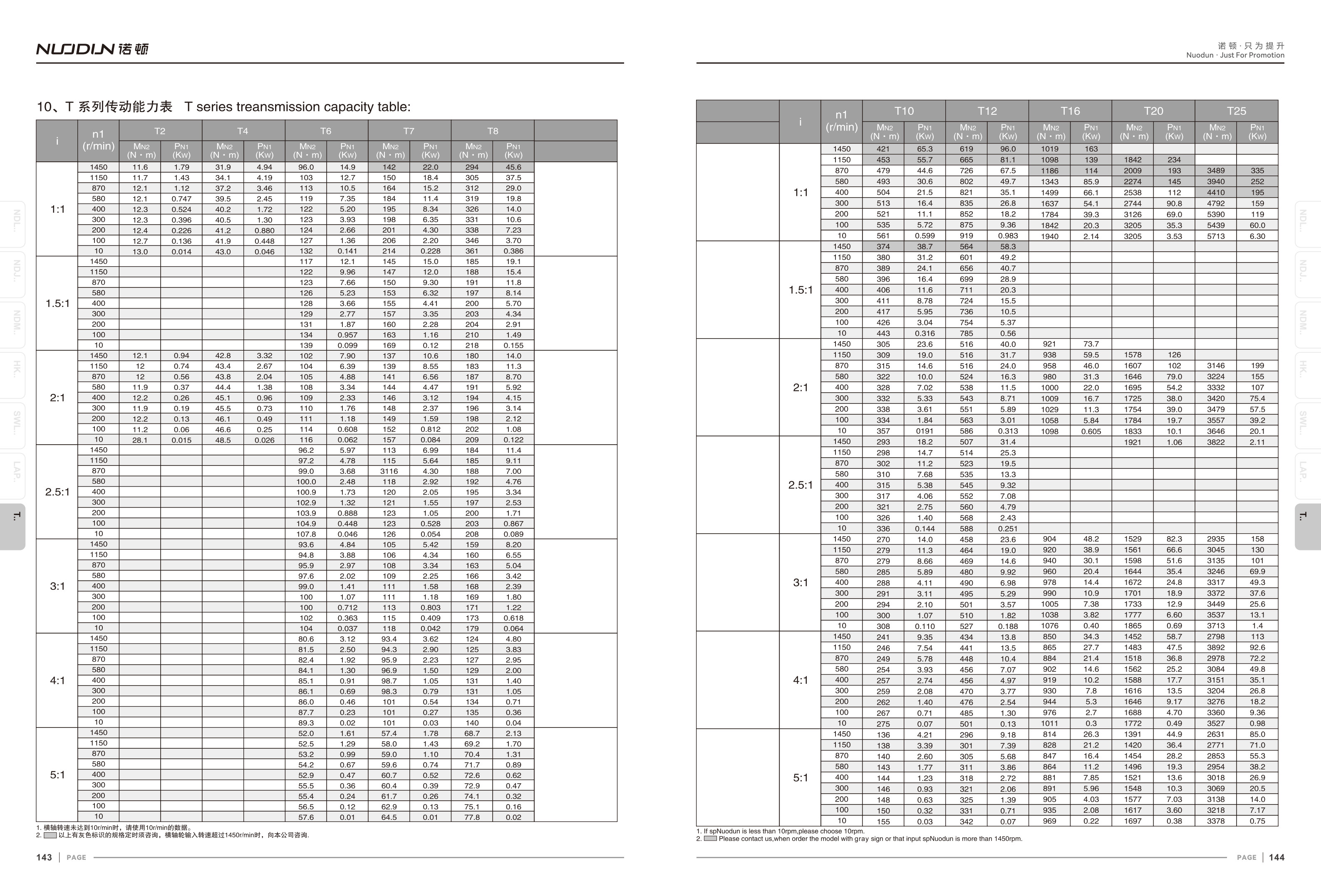

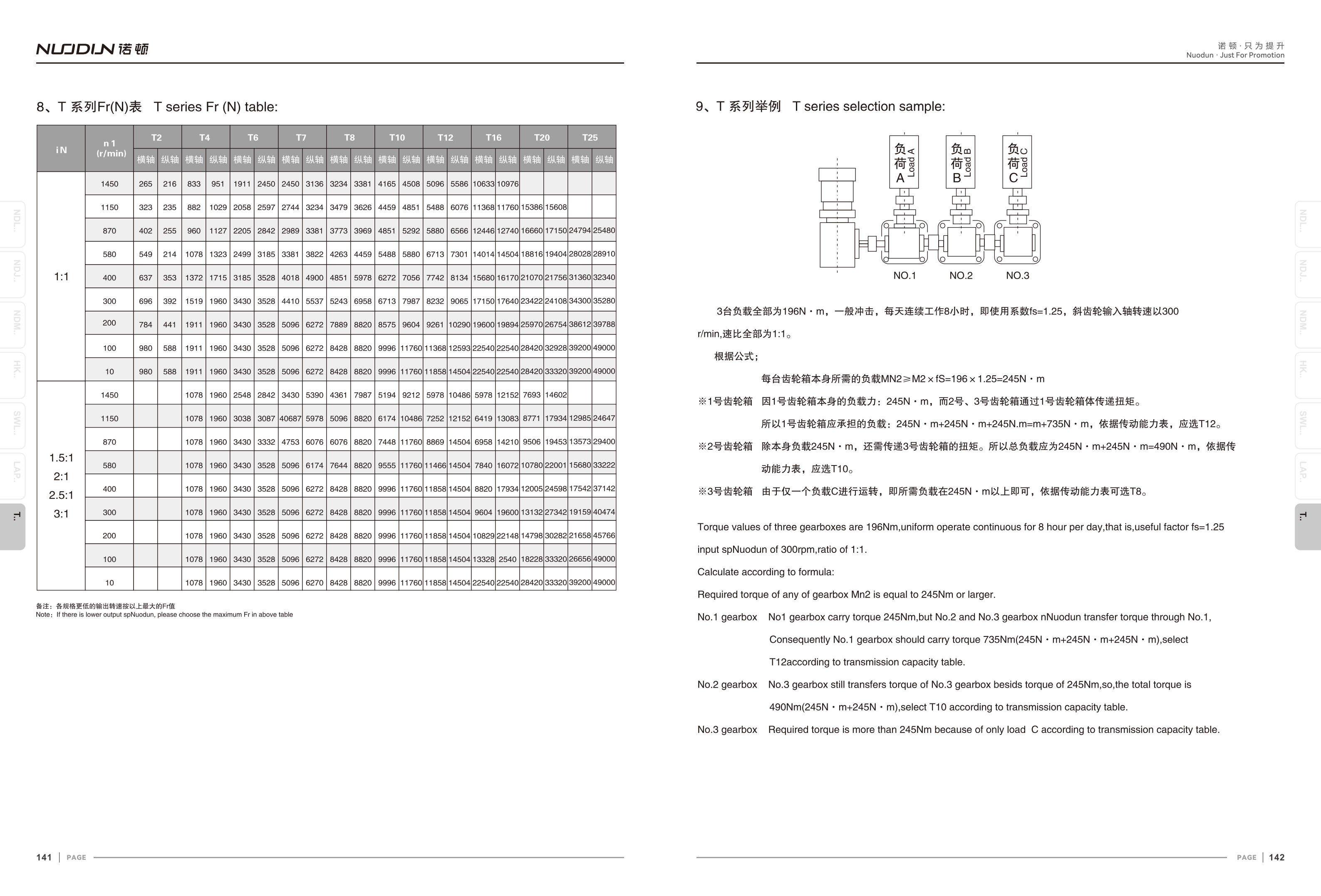

T Series Transmission Capacity Table (Excerpt)

Input Speed n₁ (r/min)	T2 (N·m)	T4 (N·m)	T6 (N·m)	T7 (N·m)	T8 (N·m)	Ratio
1450	116	173	319	439	663	1:1
1150	112	142	319	439	663	1:1
870	96	127	306	425	622	1:1
400	72	93	276	348	572	1:1
200	45	71	226	314	498	1:1
100	27	41	196	280	440	1:1

Available Ratios

• 1:1
• 1.5:1
• 2:1
• 2.5:1
• 3:1
• 4:1
• 5:1

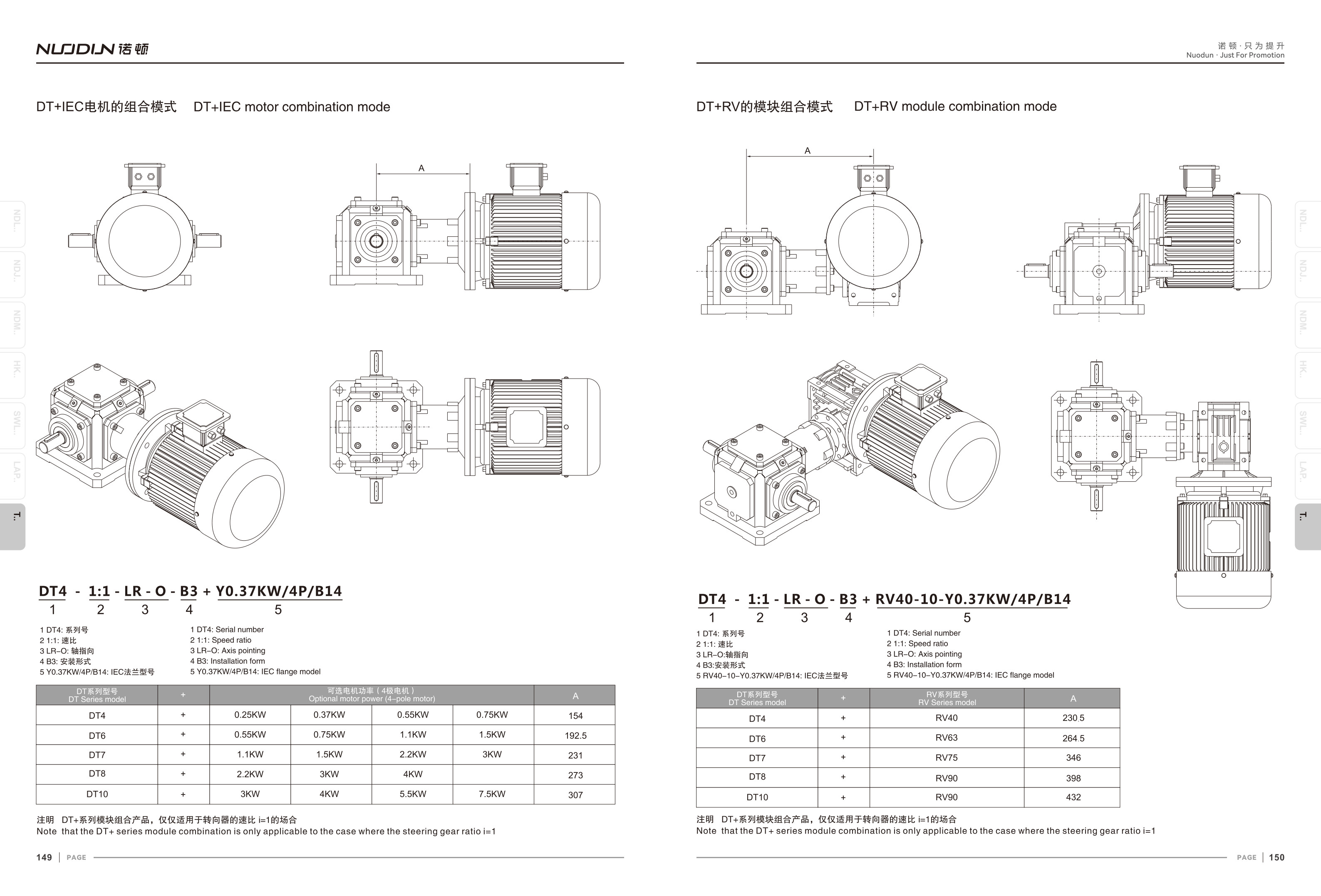

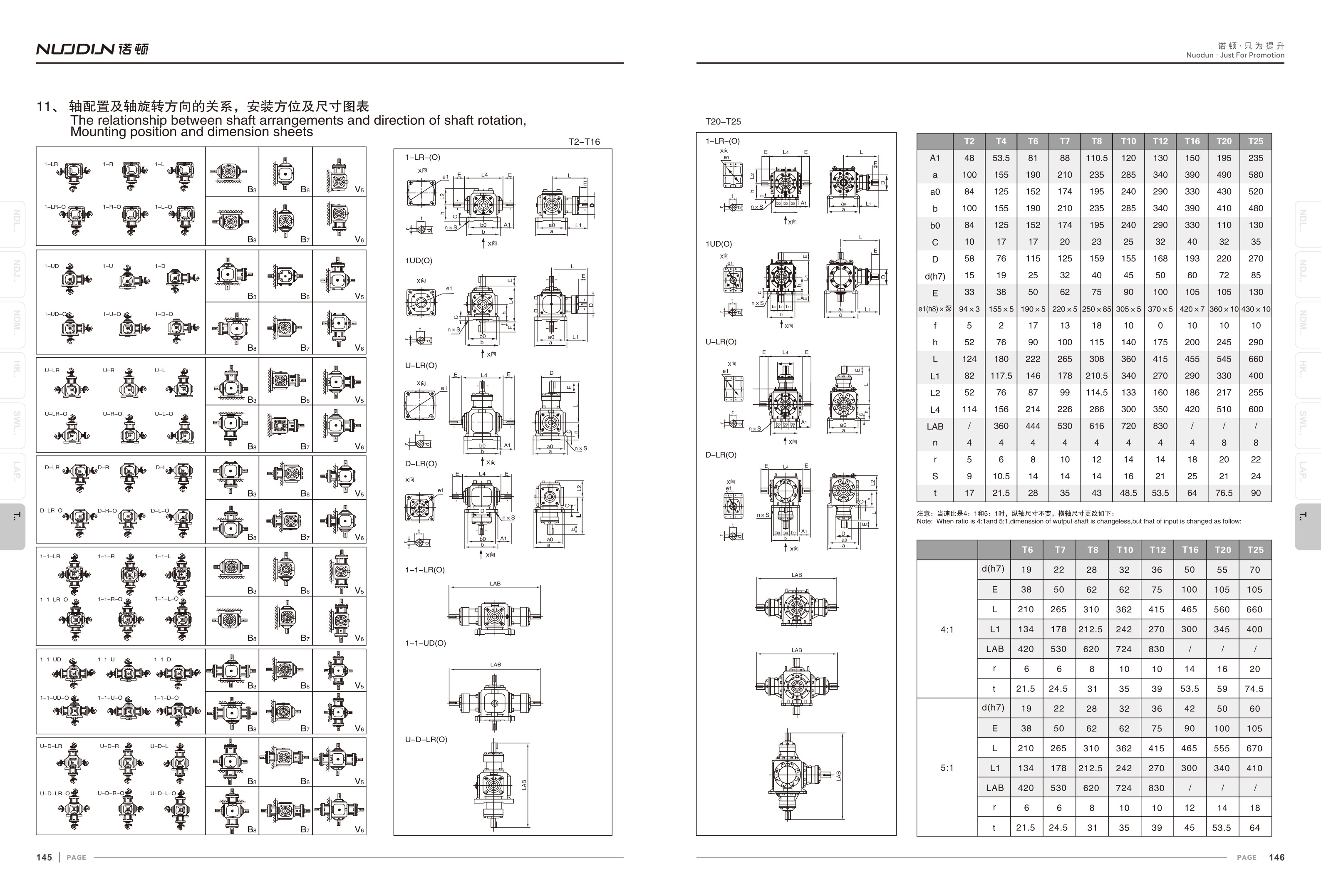

Shaft Rotation Function Summary

Shaft Type	Output Configuration
2-Extended Shaft	Forward/Reverse Rotation
3-Extended Shaft	Multi-direction power transfer
4-Extended Shaft	Dual-output systems (except ratio 1:1)

(Rotation direction varies depending on input shaft orientation.)

---

Application

The NUODUN T Series Steering Gearboxes are ideal for any application requiring precise, reliable right-angle power transmission, including:

Industrial Automation

• Automated conveying lines
• Robotics and motion platforms
• Sorting and packaging systems

Material Handling

• Belt conveyors
• Lifting mechanisms
• Roller transfer stations

Machinery & Equipment

• Printing machinery
• Textile equipment
• Agricultural machinery
• Woodworking and metal processing machinery

Power Transmission Systems

• Mechanical linkages requiring 90° direction change
• Dual-output synchronized systems
• Distributed torque transfer for multi-axis systems
