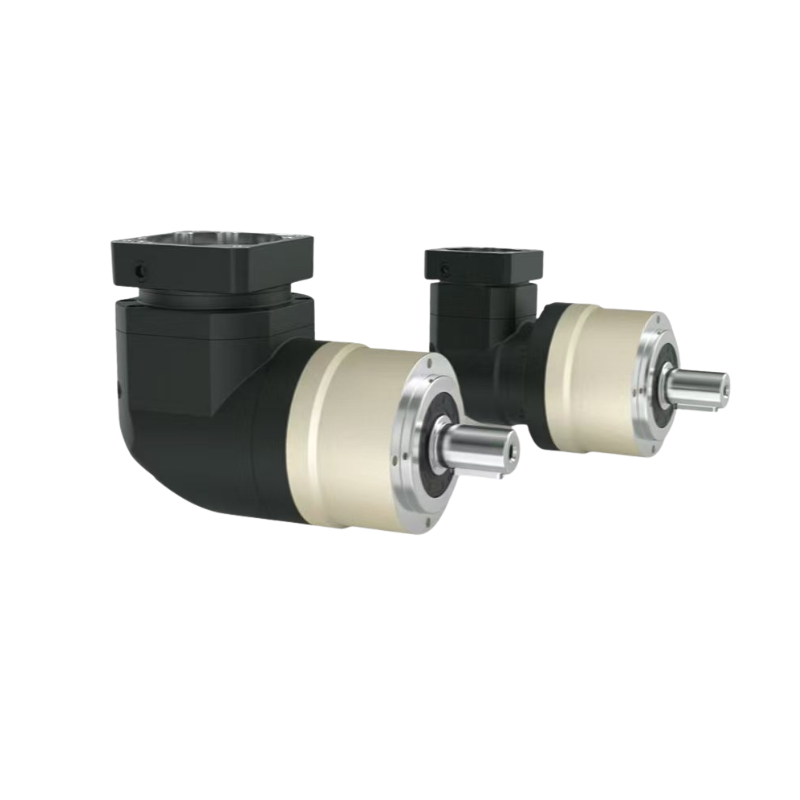

ZPER Right-Angle Planetary Gear Reducer
ZPER Right-Angle Planetary Gear Reducer
Description
ZPER Right-Angle Planetary Gear Reducer is designed for applications requiring both compact installation layout and high-precision torque transmission. Utilizing a 90-degree spiral bevel gear input and helical planetary gear output, the reducer achieves smooth, quiet, and accurate performance even under demanding dynamic loads.
This series offers low backlash, high torsional stiffness, and high transmission efficiency, making it ideal for servo motor integration, precision positioning equipment, and high-speed automation systems. Maintenance-free synthetic grease lubrication ensures long service life, while its right-angle structure allows flexible mounting in tight mechanical assemblies.
Features
Small backlash
High torque
High efficiency
Low noise
Easy installation
Maintenance-free synthetic grease lubrication
Transmission diversity
ZPER Series Performance Table
ZPER Series Performance Table
-----------------------------------------------------------------------------------------------------------
Model Unit Stage Ratio ZPER060 ZPER090 ZPER120 ZPER155 ZPER205 ZPER235
-----------------------------------------------------------------------------------------------------------
Rated output
torque T2N Nm 1 3 35 130 208 342 588 1140
4 30 95 140 290 542 1050 1700
5 28 65 160 330 620 1200 2000
6 19 55 150 310 600 1100 1900
7 15 50 140 300 550 1100 1800
8 15 50 130 260 550 1000 1600
9 10 40 100 230 450 900 1500
10 14 40 100 230 450 900 1500
-----------------------------------------------------------------------------------------------------------
Rated output
torque T2N Nm 2 12 15 50 160 320 650 1200
15 15 50 140 290 342 588 1140
16 25 55 160 330 620 1050 1700
20 20 50 160 330 620 1100 1900
-----------------------------------------------------------------------------------------------------------
Emergency stop
torque T2NOT Nm 1,2 3–100 Triple rated output torque
-----------------------------------------------------------------------------------------------------------
Rated input speed n1 rpm 1,2 5000 5000 4000 4000 3000 2000
-----------------------------------------------------------------------------------------------------------
Maximum input
speed n1max rpm 1,2 10000 8000 6000 6000 3000 2000
-----------------------------------------------------------------------------------------------------------
Precision
backlash P1 arcmin 1 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
arcmin 2 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
-----------------------------------------------------------------------------------------------------------
Torsional rigidity Nm/arcmin 1 10 25 35 55 145 225
-----------------------------------------------------------------------------------------------------------
Allowable radial
force Fr N 1,2 500 765 1625 3300 4700 7250
-----------------------------------------------------------------------------------------------------------
Allowable axial
force Fa N 1,2 300 500 765 1625 3300 4700
-----------------------------------------------------------------------------------------------------------
Service life hrs 1,2 20000
-----------------------------------------------------------------------------------------------------------
Efficiency % 1 ≥97%
2 ≥94%
-----------------------------------------------------------------------------------------------------------
Gross weight kg 1 1.3 3.7 7.8 14.5 29 48
2 1.5 4.1 9.0 17.5 33 60
-----------------------------------------------------------------------------------------------------------
Working
temperature ℃ 1,2 -10°C ~ +90°C
-----------------------------------------------------------------------------------------------------------
Lubricating 1,2 Synthetic lubricating grease
-----------------------------------------------------------------------------------------------------------
IP Grade 1,2 IP65
-----------------------------------------------------------------------------------------------------------
Installation
direction 1,2 In any direction
-----------------------------------------------------------------------------------------------------------
Noise level
(n1=3000rpm, off load) dB 1,2 ≤60 ≤63 ≤56 ≤58 ≤70 ≤73 ≤75
-----------------------------------------------------------------------------------------------------------
Application
The ZPER Right-Angle Planetary Gear Reducer is suitable for:
• Automated robotic arms and joint axes
• Servo motor drive and closed-loop control systems
• CNC machinery and precision positioning platforms
• Packaging, printing, and electronics assembly equipment
• Conveyor systems and material-handling automation
• Compact layouts requiring 90-degree motion output
• Dynamic, fast-response industrial motion applications
FAQs
Does NUODUN support non-standard customization? What is the typical lead time?
Yes. NUODUN’s core competitiveness lies in the synergistic advantage of “customization + system integration.” We support structural customization, torque customization, input flange customization, mounting interface customization, stroke customization and more for products such as planetary gearboxes, screw jacks, electric cylinders, and gearboxes. The typical lead time for standard non-standard customization is 7–20 days, while more complex engineered projects are usually delivered within 3–6 weeks.
How does NUODUN ensure high precision and reliability in customized transmission systems?
Our engineering strength comes from long-term R&D investment, CAE simulation, lifetime calculation databases, modular design frameworks, and a mature testing/verification system. This ensures that every customized solution is not only manufacturable, but also reliable under real-world loads — balancing precision, durability, and cost efficiency.
Which industries commonly use NUODUN transmission components?
Our products are widely used in photovoltaic manufacturing, semiconductor equipment, automotive production, metallurgy, logistics, medical devices, aerospace, stage automation, and industrial automation — especially where precision positioning, heavy loads, or long service life are required.
How does NUODUN guarantee long-term product reliability?
All products undergo type testing, torque testing, vibration testing, life testing, noise measurement, and precision inspection. Core components such as gears, screws, and bearings are produced using advanced machining, grinding, heat treatment, and automated assembly processes.
Does NUODUN provide global after-sales support?
Yes. We offer remote technical support, installation guidance, troubleshooting, selection assistance, and long-term spare parts support for OEM/ODM partners.
