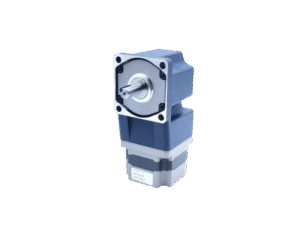

RT Series Solid Shaft Bevel Gear Reducers offer robust 90-degree gear transmission combined with a solid output shaft for high-strength mechanical applications. Engineered with heavy-duty bevel gears, RT reducers provide stable torque, low vibration, and high reliability, suitable for continuous-operation industrial equipment.

Its solid output shaft ensures strong mechanical coupling for systems requiring precise angular transmission, while maintaining compact installation dimensions. When paired with BLDC or PMSM motors, RT reducers deliver efficient, vibration-resistant, and long-life performance for a wide range of industries.

---

Key Features

✔ Precise 90° Bevel Gear Transmission

Smooth torque transfer with stable speed and low noise.

✔ Solid Output Shaft Design

Ideal for applications requiring secure coupling and higher mechanical strength.

✔ High Torque & High Reliability

Suitable for medium to heavy-duty continuous operation.

✔ Compact & Durable Construction

Strong housing resists shock, vibration, and harsh industrial environments.

✔ Wide Motor Compatibility

Matches BLDC and PMSM motors from 15W to 400W.

---

Technical Parameters

(Values vary by model: 25W / 60W / 80W / 90W / 120W / 200W brushless series)

Parameter	Specification
Rated Output Power	25W / 60W / 80W / 90W / 120W / 200W
Rated Voltage	24VDC / 90VDC / 220VDC (depending on model)
Rated Speed	2500 rpm (standard), optional 3000–4000 rpm
Speed Control Range	80–2500 rpm (continuous adjustable)
Maximum Instantaneous Torque	Model-dependent (refer to torque curve)
Rated Torque	As per motor model & reduction ratio
Rotor Inertia	0.006–0.046 J×10⁻⁴ kg·m²
Overload Protection	Electronic over-current cutoff
Voltage Protection	Undervoltage / overvoltage protection
Phase Error Protection	Open-phase protection
Frequency Tolerance	±1%
Voltage Tolerance	±10%
Insulation Class	Class E
Protection Grade	IP20 (motor)
Operating Temperature	–10°C to +40°C
Relative Humidity	≤ 85% (non-condensing)
Cooling Method	Natural air cooling
Applicable Gearbox Types	Parallel Shaft / Right-Angle / Planetary / Worm (depending on motor frame size)

---

Application

✔ Access Control & Barrier Systems

Ideal for turnstiles, gates, and inspection conveyors.

✔ Industrial Robotics

For arm joints, rotational axes, and angular drives.

✔ Textile & Processing Equipment

Right-angle layout provides flexible machine design.

✔ Photovoltaic Industry

Used in tracking control and positioning actuators.
