QRC Gear Reducer Motor

    QRC Series Helical Gear Units are modular helical gearboxes designed for compact, efficient power transmission across light to medium-duty industrial applications.
  • Power, Ratio & Torque Range
    Covers 0.12–4 kW motor power, ratio 3.66–54, and maximum output torque of 120–500 Nm, enabling flexible speed reduction and torque matching.
  • High Modularity & Motor Compatibility
    A highly modular platform that can be matched with multiple motor types including standard motors, brake motors, explosion-proof motors, inverter-duty motors, servo motors, and IEC motors.
  • Mounting & Configuration Flexibility

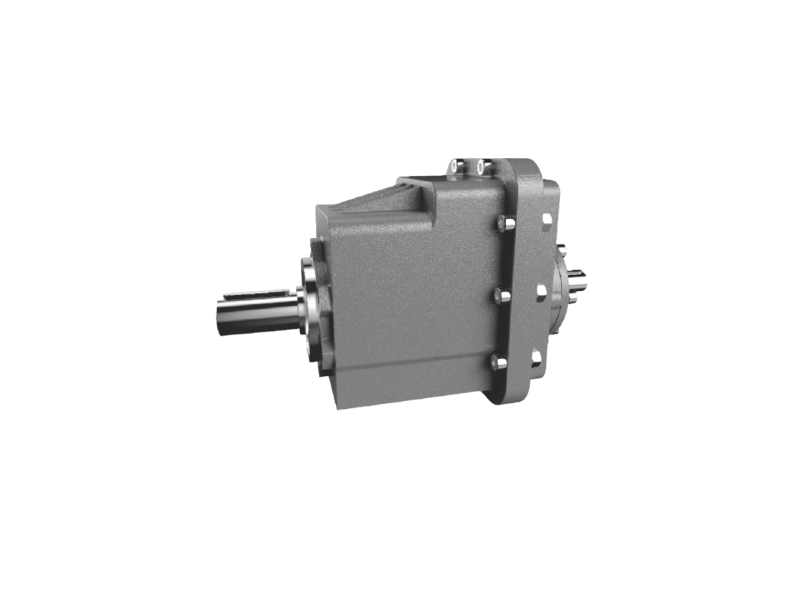

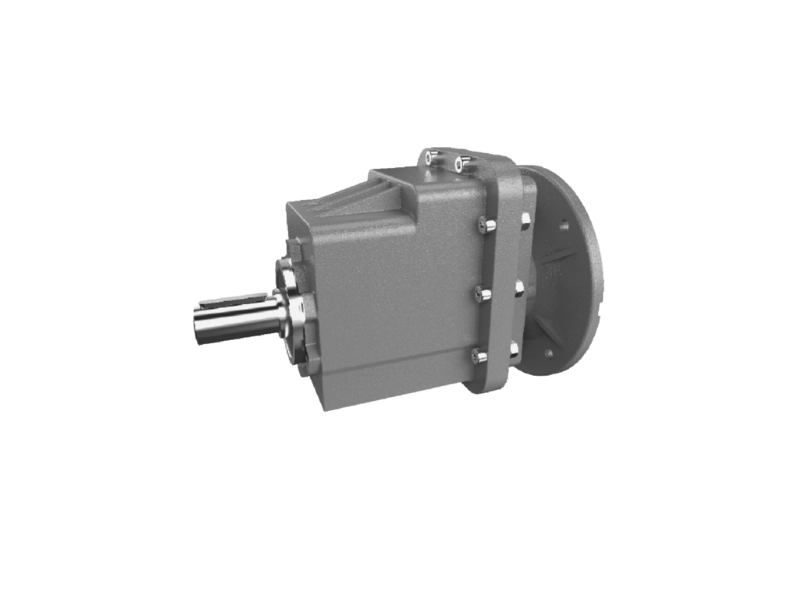

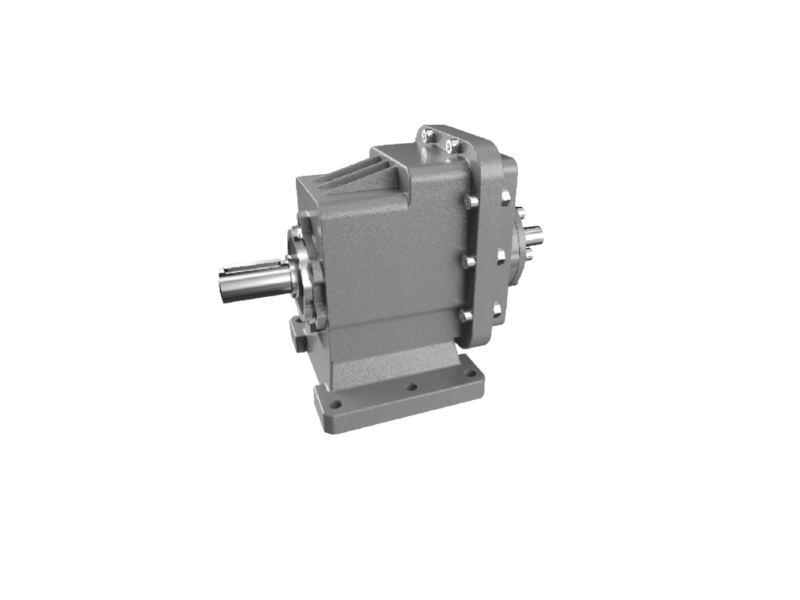

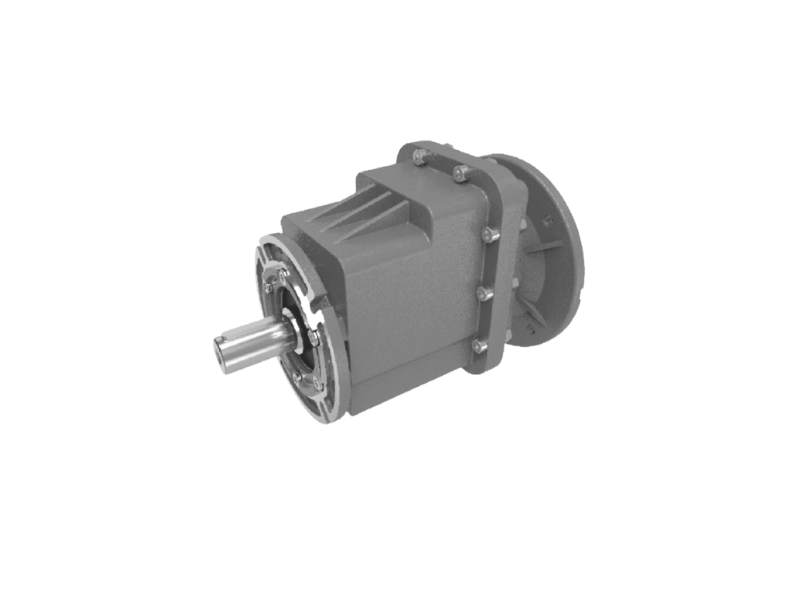

    Supports foot or flange connection and multiple mounting positions, allowing the required version to be configured to suit different machine layouts and installation constraints.
  • Gear & Housing Advantages
    Features ground-hardened, carburized helical gears for durability, an aluminum casing for lightweight construction, and a refined design delivering low noise and space-efficient installation.
