ZE Straight Teeth Planetary Gear Reducer
ZE Straight Teeth Planetary Gear Reducer
Description

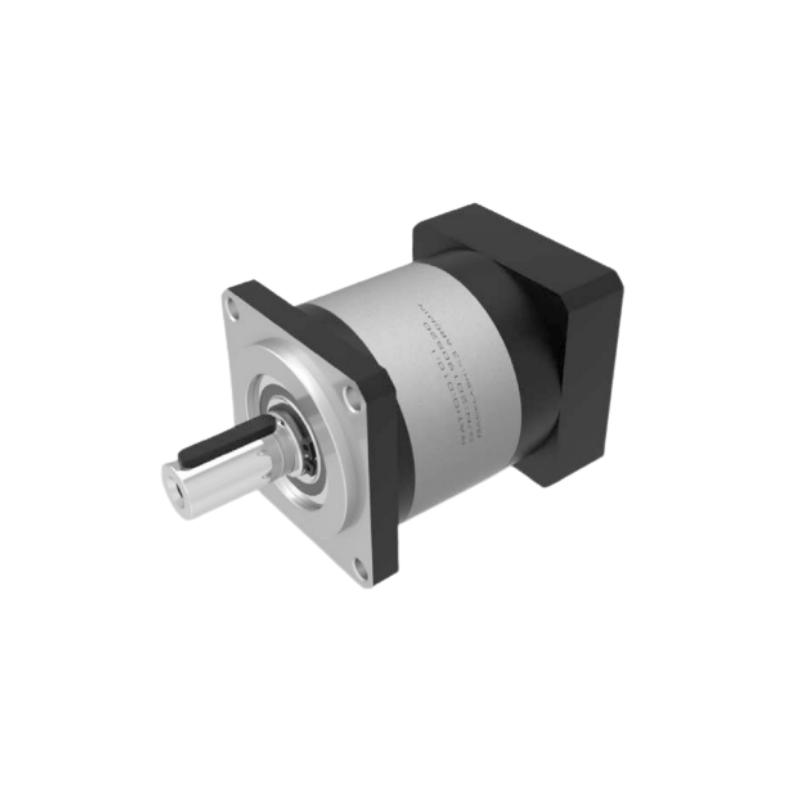

NUODUN ZE Series Straight Teeth Planetary Gear Reducer is a high-precision gearbox engineered for stable, efficient, and reliable performance in modern automation and servo motion systems. Utilizing a straight-tooth planetary design, the ZE series offers excellent transmission accuracy, high rigidity, and strong torque capability while maintaining a compact form factor.
Compatible with various servo motor specifications, the ZE series features customizable motor input flanges and universal mounting options, ensuring seamless integration into different machine layouts. Lifetime lubrication ensures long-term maintenance-free operation, allowing the reducer to perform consistently under continuous dynamic loads.
Features
- For any mounting position
- Individual adaptation of the input flange to the motor
- Lifetime lubrication for maintenance-free operation
- Equidirectional rotation
- Wide range of output shaft designs
- Precise gearing
ZE Series Performance Table
(Recreated in English according to the uploaded catalog data)
Rated Output Torque T2N (Nm)
| Ratio | ZE060 | ZE080 | ZE120 | ZE160 |
|---|---|---|---|---|
| 1 Stage | ||||
| 3 | 20 | 50 | 140 | 310 |
| 4 | 18 | 50 | 240 | 605 |
| 5 | 35 | 90 | 210 | 535 |
| 7 | 25 | 75 | 160 | 420 |
| 9 | 20 | 55 | 140 | 360 |
| 10 | 18 | 50 | 90 | 330 |
| 2 Stage | ||||
| 12 | 25 | 75 | 140 | 340 |
| 16 | 20 | 55 | 110 | 300 |
| 20 | 20 | 45 | 100 | 280 |
| 25 | 15 | 40 | 85 | 260 |
| 28 | 15 | 40 | 80 | 240 |
| 32 | 12 | 35 | 70 | 220 |
| 40 | 12 | 30 | 60 | 200 |
| 50 | 10 | 30 | 55 | 180 |
| 64 | 10 | 30 | 50 | 160 |
| 3 Stage | ||||
| 100 | 7 | 20 | 45 | 110 |
| 120 | 7 | 20 | 40 | 100 |
| 160 | 7 | 20 | 40 | 90 |
| 200 | 7 | 20 | 35 | 85 |
| 256 | 7 | 20 | 30 | 75 |
| 512 | 5 | 15 | 25 | 60 |
| 1000 | 3 | 10 | 25 | 50 |
Additional Technical Specifications
| Item | Unit | Stage | Specification |
|---|---|---|---|
| Emergency stop torque | Nm | 1,2,3 | 3× rated output torque |
| Rated input speed | rpm | 1,2,3 | 3000–4500 |
| Maximum input speed | rpm | 1,2,3 | 6000 |
| Backlash (P1) | arcmin | 1 | ≤3 |
| 2 | ≤6 | ||
| 3 | ≤8 | ||
| Torsional rigidity | Nm/arcmin | – | Model dependent |
| Allowable radial force | N | 1,2,3 | Up to 3000 |
| Allowable axial force | N | 1,2,3 | Up to 2000 |
| Service life | hrs | – | ≥20,000 |
| Efficiency | % | 1 | 97% |
| 2 | 95% | ||
| 3 | 90% | ||
| Working temperature | °C | – | –10°C to +90°C |
| Protection grade | – | – | IP65 |
| Lubrication | – | – | Synthetic lubricating grease |
| Installation direction | – | – | Any direction |
| Noise level | dB | 1,2 | ≤52–58 |
| 3 | ≤65–68 |
Application
Automation & Industrial Machinery
- Packaging machines
- Assembly automation
- Linear actuators
Robotics & Motion Control
- Robotic arms
- Precision positioning systems
- Multi-axis servo platforms
CNC & Processing Equipment
- CNC cutting and milling machines
- Laser processing
- Indexing equipment
Electronics Manufacturing
- PCB handling
- Inspection systems
Medical & Laboratory Automation
Automated testing systems
Diagnostic equipment
