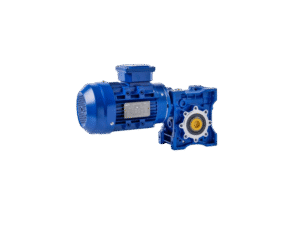

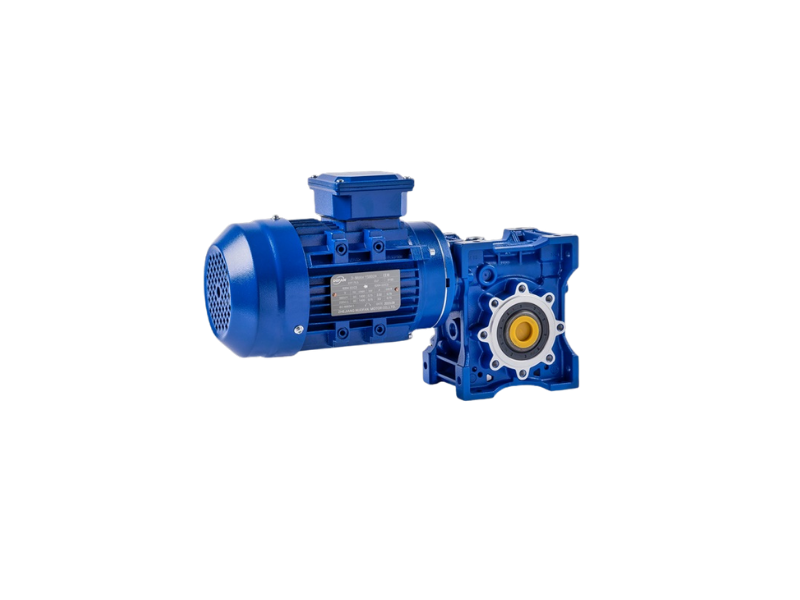

The RV-Motor Series integrates the RV worm gear reducer with a DC motor or servo motor, offering a compact, ready-to-install drive solution. This integrated design ensures precise motion control, high torque output, and excellent efficiency while reducing installation complexity. Ideal for smart automation equipment requiring stable torque and compact dimensions.

Features

• Integrated motor + reducer for easy installation
• Compatible with DC motors, BLDC motors, and servo motors
• High precision and stable low-speed control
• Lightweight aluminum-alloy body for enhanced durability
• High torque capability in a compact footprint
• Low noise, smooth transmission, and fast heat dissipation

Technical Specifications

• Gear Ratio: 7.5–100 (custom ratios available)
• Motor Type: DC motor / BLDC / Servo motor
• Power Range: 50W–1500W (custom)
• Output Torque: Up to 1000+ Nm
• Output Type: Hollow shaft, solid shaft, flange mounting

Application Scenarios

• Intelligent logistics and AGV drive systems
• Smart robotics and automation modules
• Solar tracking actuators
• Packaging, labeling, and conveying machinery
• Medical equipment & precise motion platforms
