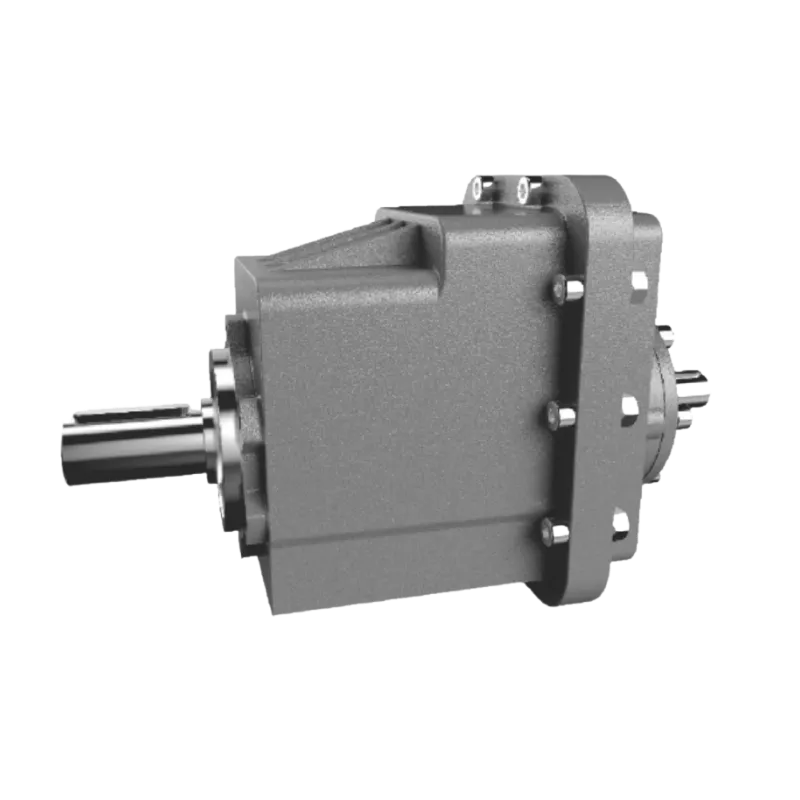

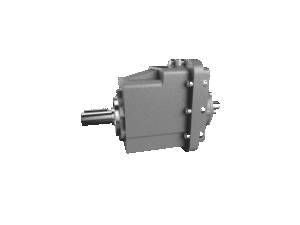

QRCZHS series is a shaft-input, B14 flange-mounted helical gear reducer designed for compact installations and flexible mechanical integration. Based on the modular QRC platform, the QRCZHS model uses a B14 small flange interface combined with a solid input shaft, allowing easy connection to external power sources such as belt drives, chain drives, or custom mechanical coupling systems.

Built with precision-ground helical gears, carburized & hardened tooth surfaces, and a lightweight aluminum housing, this unit provides smooth power transmission, low noise, and long-term durability. Its compact structure makes QRCZHS ideal for equipment where installation space is limited but high performance is still required.

Typical applications include textile machinery, food & beverage processing, ceramics equipment, packaging lines, logistics conveyors, plastics machines, and general industrial automation.

Features

• Shaft input + B14 flange hybrid structure
• Lightweight yet durable aluminum casing
• Suitable for vertical or compact installations
• High efficiency with carburized helical gears
• Low-noise performance suitable for precision machinery

Selection Factors

• Match input shaft size and coupling method
• Confirm flange mount orientation and bearing capacity
• Select fs appropriate for starting frequency
• Check load shock level for correct sizing

Technical Parameters

Application

• Shaft-driven modular conveyors
• Robotics auxiliary actuators
• Material handling systems
• Compact automation machinery
