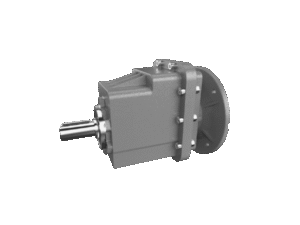

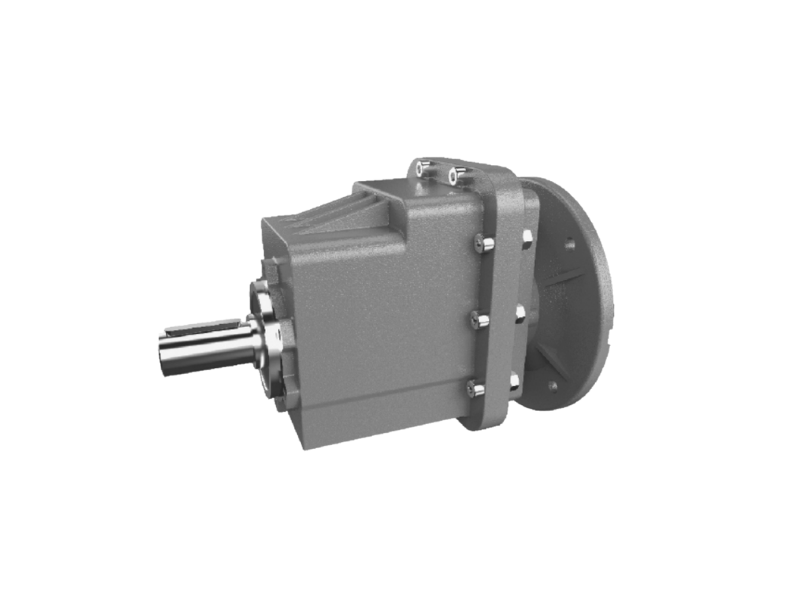

QRC P (IEC) series is a foot-mounted helical gear reducer designed with an IEC-standard motor interface, enabling direct mounting of IEC motors for fast and universal integration. As part of the QRC modular helical gearbox family, the QRC P model features precision-ground helical gears, carburized and hardened tooth surfaces, and a rigid aluminum housing, ensuring smooth transmission, long service life, and low operational noise.

Its foot-mounted base (P type) provides strong structural stability, making it suitable for long-term continuous-duty applications. The modular design supports a wide combination of gear ratios, output shaft options, and motor mounting configurations, allowing users to adapt the gearbox easily to diverse industrial requirements.

The QRC P (IEC) series is ideal for textile machinery, ceramic equipment, food production lines, packaging systems, logistics conveyors, plastics machinery, and various automation environments.

Features

• IEC-standard motor interface
• High-strength carburized and ground helical gears
• Lightweight aluminum housing with excellent thermal performance
• Available in multiple ratios from 3.66–54
• High torque range of 120–500 Nm
• Compact, low-noise structure suitable for universal machinery
• Flexible foot-mounting for easy alignment

Technical Parameters

Selection Factors

• Service factor (fs): must match daily running time and start-stop frequency
• Load types:
  A: Light shock (Fa ≤ 0.2)
  B: Medium shock (Fa ≤ 3)
  C: Heavy shock (Fa ≤ 10)
• Startup frequency (Z): includes all starts, stops, and speed changes
• Ensure fs selected from application chart ≤ fs allowed in performance table

Application

• Textile machinery
• Conveying and packaging systems
• Light industrial automation
• Ceramic and food processing equipment
• Plastic shaping and material handling
