Planetary Gear Reducer: Structural,Principles and Advantages

Introduction

Planetary gear reducers, also known as planetary gearboxes, are among the most efficient and compact transmission systems used in modern mechanical and electromechanical equipment. Due to their high torque density, excellent load distribution, and long service life, they are widely applied in automation systems, industrial machinery, robotics, renewable energy equipment, and precision motion control.

Compared with conventional parallel-shaft gear reducers, planetary gear reducers offer significant advantages in size, weight, efficiency, and durability. This article provides a structured and in-depth overview of the structural characteristics, working principles, and performance features of planetary gear reducers, while also addressing practical considerations for selection and application.

As a professional manufacturer specializing in drive, transmission, and linear motion execution components, NUODUN provides planetary gear reducer solutions designed to meet demanding industrial requirements worldwide.

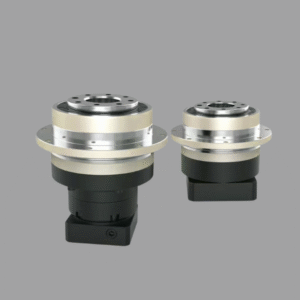

Basic Structure of a Planetary Gear Reducer

A planetary gear reducer consists of four core components working together in a compact, coaxial configuration:

Sun Gear
The sun gear is located at the center of the gear system and is typically connected to the input shaft. It serves as the primary driving gear, transmitting power to the surrounding planetary gears.

Planet Gears
Multiple planet gears are evenly distributed around the sun gear. These gears simultaneously mesh with both the sun gear and the internal ring gear. Their symmetric arrangement allows torque to be shared across multiple contact points, significantly increasing load capacity.

Ring Gear (Internal Gear)
The ring gear has internal teeth and surrounds the planet gears. It is usually fixed to the housing, although in certain configurations it may act as an input or output element depending on the transmission design.

Planet Carrier
The planet carrier holds the planet gears in position and transfers the combined output torque to the output shaft. Depending on the design, the carrier can be fixed, driven, or act as the output component.

This integrated structure enables planetary gear reducers to achieve high transmission ratios in a very compact envelope, making them ideal for applications with limited installation space.

One of the defining features of planetary gear reducers is their ability to distribute loads evenly among multiple planet gears. To ensure uniform load sharing, planetary gear reducers often adopt gear floating mechanisms.

These mechanisms may include:

Floating sun gear design
Floating planet carrier design
Combined floating sun gear and carrier design

By allowing limited axial or radial movement, the floating mechanism compensates for manufacturing tolerances and assembly errors. This ensures that each planet gear bears a nearly equal share of the load, reducing localized stress and improving overall reliability.

Key Technical Advantages of Industrial Planetary Gear Reducers

Compact Size and Lightweight Design

One of the most significant advantages of planetary gear reducers is their exceptional power density. Under equivalent operating conditions:

Weight is reduced by more than 50% compared to conventional cylindrical gear reducers
Overall volume is reduced by 50–70%

This compact structure is ideal for servo motor installations with limited space, such as robotic joints and integrated automation modules.

High Transmission Efficiency

Planetary gear reducers deliver outstanding efficiency across different stages:

Single-stage planetary gearbox: 97%–98%
Two-stage planetary gearbox: 94%–96%
Three-stage planetary gearbox: 91%–94%

High efficiency reduces energy loss, lowers heat generation, and improves system stability—key concerns for global B2B buyers focused on long-term operating costs.

Wide Power and Torque Range

Industrial planetary gear reducers support a broad operating range:

Input power: from less than 1 kW to over 1300 kW
Torque capacity: suitable for both light-duty and heavy-duty industrial applications

This versatility allows one gearbox technology to serve multiple industries, from precision automation to heavy machinery.

Large Reduction Ratio Range

Planetary gear reducers provide a wide reduction ratio spectrum:

Reduction ratio (i): 2.8 to 2000

By combining multi-stage planetary designs, manufacturers can precisely match speed and torque requirements for different servo motor configurations.

High Adaptability and Long Service Life

Industrial planetary gear reducers are designed for demanding environments:

Precision-ground gear teeth for optimal contact
Stable operation with low vibration and noise
Service life exceeding 10 years under proper conditions

These characteristics make planetary gear reducers suitable for continuous operation in automated production lines and industrial equipment.

Working Characteristics of Planetary Gear Reducers

Advanced Gear Hardening Technology

All critical gears are manufactured from low-carbon alloy steel and treated through carburizing and quenching processes. This results in:

High surface hardness
Tough internal core
Excellent resistance to impact and fatigue

Precision Grinding for High Accuracy

Precision grinding ensures:

Superior meshing accuracy
Improved tooth contact ratio
Reduced backlash

This is especially important for servo motor planetary gear reducers, where positioning accuracy directly affects system performance.

Exceptional Load Capacity

Due to multiple planet gears sharing the load, planetary gear reducers offer:

Up to seven times higher load capacity compared with traditional gear reducers of similar size

This makes them ideal for high-torque applications without increasing gearbox dimensions.

High Efficiency and Long Operating Life

With transmission efficiency reaching up to 98%, planetary gear reducers reduce mechanical losses and extend component life, contributing to lower total cost of ownership.

Applications of Planetary Gear Reducers with Servo Motors

Industrial planetary gear reducers are widely used in:

Industrial robots and robotic arms
CNC machine tools
Automated assembly lines
Packaging and labeling equipment
Logistics and conveyor systems
Renewable energy and heavy industrial machinery

For global B2B buyers, planetary gear reducers offer a reliable, scalable solution adaptable to diverse industries.

Why Global B2B Buyers Choose NUODUN Planetary Gear Reducers

NUODUN focuses on drive, transmission, and linear motion execution components, delivering:

Precision planetary gear reducers for servo motor integration
Customizable reduction ratios and torque ratings
Stable quality for international industrial standards
Engineering support for selection and application matching

Our products are designed to support OEMs, system integrators, and industrial buyers seeking long-term performance and reliability.

Frequently Asked Questions (FAQ)

What is the main advantage of a planetary gear reducer over a traditional gearbox?

Planetary gear reducers offer higher torque density, compact size, better efficiency, and longer service life due to load sharing among multiple gears.

Are planetary gear reducers suitable for servo motors?

Yes. Planetary gear reducers are widely used with servo motors because of their low backlash, high precision, and excellent dynamic performance.

How do I choose the right reduction ratio?

Selection depends on required output torque, motor speed, application load, and positioning accuracy. NUODUN provides technical support to assist with ratio selection.

What industries commonly use industrial planetary gear reducers?

Robotics, automation, CNC machining, packaging, logistics, renewable energy, and heavy industrial equipment.

Can planetary gear reducers handle continuous operation?

Yes. With proper lubrication and installation, industrial planetary gear reducers are designed for long-term continuous operation.
