Gearboxes and electric motors are the core components of industrial machinery. Whether used in conveyors, packaging machines, robots, CNC equipment, lifting systems, or automated production lines, they must operate reliably under constant load, speed changes, and environmental stress.

However, even high-quality, well-designed gear reducers may encounter problems during long-term use—such as noise, overheating, insufficient torque, vibration, leakage, or even shaft breakage.

Most of these failures are avoidable when users understand why they occur and how to correct them quickly.

This guide provides a comprehensive, engineering-based explanation of the most common gearbox and motor issues, their root causes, and practical solutions. It incorporates real field experience from NUODUN’s transmission engineering team and is designed to help users improve system stability and maximize equipment lifespan.

---

1. Excessive Noise During Gearbox or Motor Operation

Noise is often the earliest warning sign of mechanical trouble.

Common Causes

1. Gear meshing errors due to misalignment

When the motor shaft and gearbox input are not concentric, gears do not mesh smoothly.

2. Lack of lubrication or oil degradation

Insufficient lubrication increases friction and accelerates wear, producing high noise.

3. Gear surface wear or pitting

Over time, gears may develop scuffing or micro-pits, causing irregular meshing.

4. Damaged bearings

Bearing wear creates high-frequency whine, rattling, or grinding noises.

5. Loose installation bolts or mounting surfaces

Vibration is amplified when structural rigidity is insufficient.

Solutions

• Re-align the motor and gearbox using precise tools.
• Replace lubricant with the correct grade and quantity.
• Check for gear wear and replace damaged gears.
• Replace bearings before catastrophic failure occurs.
• Reinforce installation surfaces and ensure bolts are torqued properly.

---

2. Gearbox or Motor Overheating

Overheating negatively affects torque capability, lubrication quality, efficiency, and service life.

Common Causes

1. Operating torque exceeds gearbox rating

Continuous overload generates heat at the gear and bearing contact surfaces.

2. Poor ventilation or high ambient temperature

Machines installed in enclosed spaces often retain heat.

3. Excessive input speed

Running above the rated input RPM increases oil churning losses, friction, and temperature.

4. Incorrect lubrication

Oil that is too thick increases resistance; oil that is too thin fails to protect the gears.

5. Bearing friction due to wear

Failing bearings heat rapidly and may seize.

Solutions

• Verify actual load and use a gearbox with proper safety margin.
• Improve ventilation or install cooling accessories.
• Adjust motor speed settings and stay within rated input limits.
• Replace lubrication with the recommended viscosity grade.
• Inspect and replace bearings if overheating persists.

---

3. Insufficient Output Torque

When equipment fails to deliver expected torque, production efficiency drops and motors may stall.

Common Causes

1. Undersized gearbox for real working conditions

Users sometimes select reducers based only on rated torque, ignoring peak torque and duty cycle.

2. Motor torque lower than expected

Incorrect motor selection or misunderstanding overload capabilities leads to mismatch.

3. Internal wear or partial failure inside gearbox

Worn gears or bearings reduce efficiency and output torque.

4. Load interference or mechanical binding

External equipment may jam, creating resistance.

Solutions

• Select gearbox based on peak torque, not just rated torque.
• Re-evaluate the entire load profile (acceleration, inertia, stopping cycles).
• Inspect internal components and replace worn parts.
• Check driven machinery for friction points or misalignment.

---

4. Abnormal Vibration or Instability

Vibration is a serious issue because it accelerates mechanical wear and may lead to shaft failure.

Common Causes

1. Misalignment between motor and gearbox

Even slight offset causes bending forces that produce vibration.

2. Unbalanced coupling or rotating components

Imbalance becomes severe at high speed.

3. Bent shaft caused by previous overload

A shaft that is already deformed produces continuous vibration.

4. Excessive radial load

Over-tightened belts, unsupported pulleys, or large cantilever loads cause imbalance.

5. Improper mounting rigidity

Flexible or uneven mounting surfaces transmit vibration throughout the system.

Solutions

• Perform accurate alignment using dial gauge or laser alignment.
• Balance all couplings, pulleys, and rotating parts.
• Replace bent or damaged shafts immediately.
• Add external bearings to support radial loads.
• Reinforce mounting structure with high-stiffness plates.

---

5. Shaft Breakage (Motor or Gearbox)

Shaft fracture is one of the most severe failures in mechanical transmission systems. Contrary to common belief, the cause is rarely material quality—it is almost always mechanical stress or installation failure.

Main Causes

1. Misalignment causing bending fatigue

This is the #1 reason shafts break.
The shaft bends repeatedly during rotation, leading to surface cracks that propagate inward.

2. Shock loads and peak torque exceeding design limits

Frequent acceleration, sudden stops, reversing, or load impacts create extreme torque spikes.

3. Undersized gearbox selection

If the motor’s overload torque is greater than the gearbox capacity, the output shaft will eventually twist off.

4. Poor coupling installation or keyway stress concentration

Micro-slippage between the key and keyway causes friction, heat, and fatigue cracking.

5. Excessive radial load on gearbox output

Improper belt drive installations often destroy the output shaft.

Solutions

• Ensure perfect alignment during installation (this is essential).
• Choose a larger gearbox with adequate torque safety factor.
• Use soft-start drivers to reduce peak torque.
• Strengthen or redesign shaft geometry via OEM customization.
• Avoid direct belt loading unless the reducer is rated for it.

---

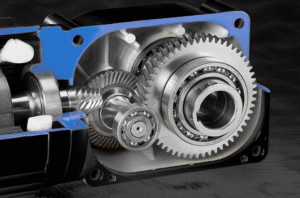

6. Lubrication Problems and Oil Leakage

Oil leakage affects both cooling and lubrication, accelerating wear.

Common Causes

• Worn oil seals
• Overfilled oil chamber
• Incorrect lubricant viscosity
• Shaft wear at the oil seal contact area
• High internal pressure due to overheating

Solutions

• Replace oil seals with high-quality, temperature-resistant models.
• Maintain proper oil level—not too high, not too low.
• Improve cooling to reduce internal pressure.
• Polish or replace shaft surface where the seal contacts.

---

7. Motor Stalling, Overload Trips, or Sudden Shutdowns

A stalling motor indicates a serious mismatch between load and system capability.

Common Causes

• Gearbox internal seizure
• Excessive startup inertia
• Mechanical interference in the driven machine
• Incorrect overload protection settings
• Gearbox torque rating insufficient for load

Solutions

• Immediately stop equipment and inspect reducer condition.
• Reduce inertia or adjust ramp acceleration in the drive controller.
• Reconfigure load mechanism to reduce resistance.
• Tune motor protection parameters to match application requirements.

8. Excessive Backlash or Output Play

Backlash refers to the small amount of free movement between meshing gears before torque is fully transmitted. While a certain degree of backlash is normal, excessive backlash indicates mechanical degradation or improper installation.

Common Causes

1. Gear Wear Over Time

Continuous heavy-duty operation, improper lubrication, or overload can enlarge the gap between meshing teeth.

2. Bearing Wear or Loss of Preload

If bearings lose rigidity, the shafts can shift microscopically, increasing backlash.

3. Assembly Tolerance Issues

Incorrect installation procedures or improper tightening torque may reduce system rigidity.

4. Repeated Shock Loads

Applications involving frequent start/stop cycles, reversing, or high-inertia loads accelerate wear on both gears and bearings.

Solutions

• Replace worn gears or upgrade to hardened precision gears.
• Install new bearings with appropriate preload to restore shaft stability.
• Improve system rigidity with a stiffer mounting platform.
• Choose low-backlash planetary reducers for servo or positioning applications.

---

9. Reduced Service Life of Gearbox or Motor

A gearbox that fails earlier than its expected lifespan almost always suffers from application-related stresses, not manufacturing defects. Early degradation is usually a sign that the working environment or loading conditions were underestimated.

Possible Causes

1. Incorrect Gearbox Sizing

Choosing a reducer based on rated torque alone—without considering peak torque, shock loads, or duty cycle—leads to premature wear.

2. Extreme Operating Conditions

High temperature, humidity, dust, metal particles, or chemical fumes accelerate internal wear.

3. Improper Mounting Orientation

Some reducers require specific mounting positions to ensure proper lubrication flow.

4. Lack of Preventive Maintenance

Ignoring lubrication intervals, seal replacement, or inspection schedules shortens service life.

5. Excessive Radial or Axial Load

Unsupported pulleys, misaligned couplings, or over-tensioned belts impose additional forces on bearings and shafts.

Solutions

• Recalculate load requirements based on actual working conditions.
• Select a higher-specification gearbox or larger frame size.
• Improve environmental sealing and ventilation.
• Follow preventive maintenance intervals strictly.
• Add external bearing supports for heavy radial loads.

---

Frequently Asked Questions (FAQ)

1. What is the most common cause of gearbox failure?

Misalignment is the leading cause, followed by overload and improper installation.

2. How much torque safety factor should I use?

For dynamic or high-inertia applications, use 1.8× to 2.5× the maximum expected torque.

3. Can I eliminate noise with lubrication alone?

Only if noise is caused by insufficient lubrication. Noise caused by misalignment, gear wear, or bearing damage requires mechanical correction.

4. Do flexible couplings fix misalignment issues?

Flexible couplings compensate minor deviations but do not correct improper alignment. The root issue must still be fixed.

5. Why does my motor trip or stall during operation?

This typically indicates excessive load, internal gearbox resistance, or incorrect overload protection settings.

6. How often should gearboxes be inspected?

Standard applications: every 3–6 months
High-duty cycles: every 1–3 months

7. What lubrication should I use?

Follow manufacturer guidelines. Using the wrong oil viscosity will increase wear, noise, and temperature.

---

Conclusion: Most Gearbox and Motor Problems Are Preventable

The majority of gearbox and motor failures—including noise, overheating, vibration, insufficient torque, backlash, and even shaft breakage—can be traced back to a small set of root causes:

• Misalignment
• Incorrect reducer selection
• Overload or shock loading
• Poor lubrication
• Improper installation
• Environmental stress

By applying correct engineering practices and performing regular inspections, users can dramatically extend the lifespan of both gearboxes and motors. Proper sizing, alignment, and torque management are the key pillars of reliable transmission systems.

With the right technical support and high-quality equipment, these issues can be minimized or eliminated altogether.

---
