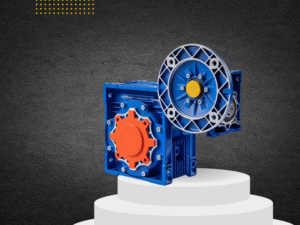

RV Worm Gear Reducers: Working Principle, Structure, and Technical Advantages

RV worm gear reducers are widely used mechanical transmission devices that convert the high-speed rotation of an electric motor into low-speed, high-torque output. Their compact size, smooth operation, and excellent load-carrying capabilities make them a preferred choice across automation equipment, lifting systems, conveyors, and various industrial applications.

This comprehensive guide explains the working principle, internal structure, performance characteristics, and real-world usage scenarios of RV reducers. It is designed for engineers, integrators, and equipment manufacturers seeking a reliable reference when selecting precision transmission components.

Understanding the Working Principle of an RV Worm Gear Reducer

An RV reducer operates based on the meshing relationship between a worm (input shaft) and a worm wheel (output gear). When the motor drives the worm at high speed, its helical thread engages with the worm wheel’s curved teeth. Through a combination of sliding and rolling contact, the reducer transforms high input speed into controlled, powerful torque at the output shaft.

High Gear Ratio Through Multiple-Teeth Engagement

The worm wheel typically has a significantly larger number of teeth than the worm. This allows RV reducers to achieve high reduction ratios in a single stage, commonly ranging from:

5:1 to 100:1 in standard configurations
Even higher ratios when combined with additional stages

Such ratios enable powerful torque multiplication without increasing installation space.

Self-Locking Capability Enhances Safety

When the worm’s lead angle is within a specific range, the worm wheel cannot drive the worm in reverse. This self-locking property is particularly valuable in:

Lifting platforms
Elevators
Hoisting and stage machinery
Position-holding mechanisms

It prevents accidental back-driving, ensuring the equipment remains safely fixed when power is removed.

Internal Structure of an RV Worm Gear Reducer

Despite its compact appearance, an RV reducer consists of precisely engineered components designed for smooth, efficient, and long-lasting torque transmission.

1. Worm Shaft (Input Section)

Made of high-strength alloy steel
Surface is hardened and ground for improved wear resistance
Helical threads provide continuous, stable engagement with the worm wheel

2. Worm Wheel (Output Gear)

Typically manufactured from tin bronze or wear-resistant copper alloys
Excellent anti-friction performance
Able to withstand high contact stress due to line contact geometry

3. Bearings and Support System

High-capacity ball or roller bearings support axial and radial loads
Ensures precise alignment between worm and wheel
Extends service life under heavy-duty working conditions

4. Housing and Lubrication System

Cast iron or aluminum alloy housing ensures rigidity and thermal dissipation
Fully sealed structure protects against dust and oil leakage
Internal lubrication reduces friction, improves efficiency, and controls temperature rise

5. Optional Multi-Stage Transmission Modules

Some advanced RV reducers integrate additional mechanisms for higher accuracy and load capacity:

Planetary gear stages for compact multi-stage reduction
Cycloidal pinwheel modules to enhance precision, shock resistance, and efficiency

These hybrid configurations make RV reducers suitable for both heavy-load and precision-motion applications.

Key Technical Advantages of RV Worm Gear Reducers

Compact Size with High Torque Output

The geometric characteristics of worm and worm wheel contact allow RV reducers to transmit significant torque while maintaining a small footprint. This is ideal for installations with limited space but high power requirements.

Excellent Self-Locking for Safety-Critical Applications

Reverse drive resistance prevents backdriving under load, making RV reducers indispensable in lifting mechanisms and equipment requiring secure position holding.

Smooth, Quiet Transmission

The sliding contact between the worm and the wheel provides:

Low vibration
Reduced operational noise
More stable motion than many gear-based reducers

This makes RV reducers suitable for environments where quiet operation is essential.

High Load Capacity and Long Service Life

Linear contact and multi-tooth engagement distribute load evenly across the worm wheel, resulting in:

Higher shock resistance
Better durability
Reduced risk of gear tooth failure

Simple Structure, Reliable Maintenance

RV reducers feature fewer transmission components than many alternative gearbox types. This:

Simplifies installation
Reduces maintenance requirements
Minimizes downtime during servicing

Industrial Applications of RV Worm Gear Reducers

RV worm gear reducers are versatile and widely adaptable across numerous industries. Their combination of compact structure, high torque, and self-locking capability makes them ideal for applications such as:

1. Automation Equipment

Assembly lines
Indexing tables
Packaging machines
Material handling robotics

2. Robotics and Precision Motion

Joint modules of collaborative robots
Servo-driven systems requiring multi-stage reduction
End-of-arm tooling mechanisms

3. Lifting and Hoisting Machinery

Cranes
Elevators
Stage lifting systems
Construction hoists

4. Conveyors and Logistics Equipment

Belt conveyors
Roller conveyors
Sorting machines
Automated warehousing

5. Industrial Machinery

Mixers
Crushers
Pharmaceutical equipment
Textile machinery

As industrial automation accelerates, RV reducers continue to play a vital role in delivering stable, precise, and high-torque performance.

How NUODUN Enhances the Value of RV Reducers

As a professional transmission manufacturer, NUODUN specializes in designing and producing high-precision gear reducers, screw jacks, planetary gearboxes, and custom motion-control solutions. Our RV series reducers provide:

Precision-machined worm shafts
High-strength bronze alloy worm wheels
Optimized housing structure for heat dissipation
Multi-stage options for higher reduction ratios
OEM/ODM customization options

Whether your application demands compact size, high torque, or stable output under continuous load, NUODUN can develop tailored solutions to match your project requirements.

Frequently Asked Questions (FAQ)

1. What is the efficiency of an RV worm gear reducer?

Standard RV reducers typically achieve 60–85% efficiency, depending on reduction ratio, lubrication quality, and working load.

2. Is an RV reducer suitable for continuous heavy-load operation?

Yes. RV reducers are designed for high load capacity due to multi-tooth meshing and robust material construction. Proper lubrication ensures long-term durability.

3. Can an RV reducer be used for vertical lifting applications?

Absolutely. Its self-locking property makes it ideal for lifting systems where backdriving must be prevented.

4. What lubrication method is recommended?

Most RV reducers use oil bath lubrication. High-viscosity synthetic gear oil is recommended for better temperature control and wear resistance.

5. Does NUODUN support OEM and customization?

Yes. NUODUN provides OEM/ODM services, including custom ratios, mounting interfaces, special housings, and integrated transmission modules.

Conclusion: Why Choose an RV Worm Gear Reducer?

RV reducers remain one of the most trusted solutions for converting motor speed into stable, high-torque mechanical output. Their compact design, smooth operation, high load capacity, and safety-enhancing self-locking mechanism make them indispensable in modern manufacturing.

With years of expertise in precision transmission engineering, NUODUN offers high-performance RV reducers built to meet the demanding requirements of global industries.
