Gear Drives in Heavy-Duty Straightening & Leveling Machinery

Straightening and leveling machines require highly reliable torque transmission to correct material deformation and ensure consistent flatness. These systems operate under heavy loads, variable speeds, and continuous-duty conditions, which place demanding requirements on the gear reducers driving each roller. NUODUN supplied a customized multi-axis transmission solution designed to deliver stable performance, precise synchronization, and long-term durability.

Application

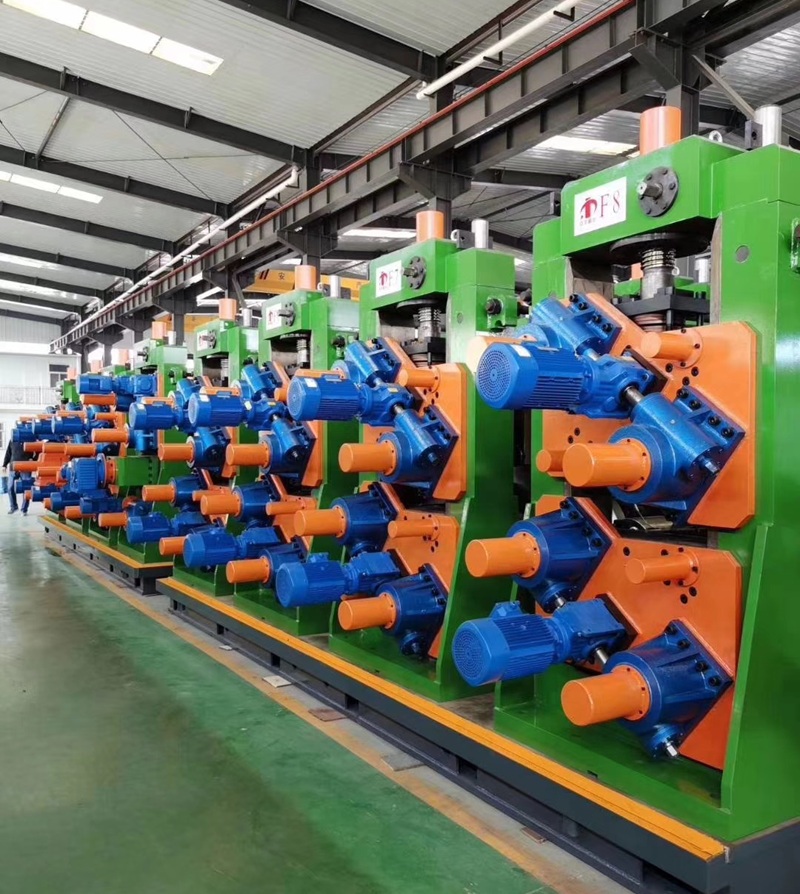

The machine shown integrates multiple NUODUN helical and worm-gear reducers, paired with high-efficiency geared motors. Each reducer is mounted directly onto the roller shaft to provide independent, controllable torque for every leveling stage.

Functions Enabled by NUODUN Drives

• Precise roller speed control for accurate leveling correction across the full material width
• High torque output to handle thick plates, coils, and high-strength materials
• Stable and synchronized multi-roller operation ensuring consistent straightening results
• Low noise and low vibration improving mechanical stability and operator comfort
• Compact right-angle design supporting dense roller arrangement without increasing machine footprint

Why NUODUN Was Selected

• High load-carrying capacity suitable for industrial steel leveling applications
• Precision gear machining ensuring smooth torque transmission and uniform motion
• Enhanced durability with optimized lubrication and heat-treatment processes
• Modular design enabling fast installation and easy maintenance
• Reliable performance under 24/7 production environments

Customer Benefits

• Improved straightening accuracy and flatness consistency
• Reduced failure rate with long-life gear components
• Higher production efficiency due to stable multi-roller synchronization
• Simplified servicing and replacement through modular reducer design
• Enhanced equipment lifespan even under high load and repetitive stress
