Actuation System in Automotive Welding Robots & Body Assembly Lines

Automotive welding and body-assembly production lines demand extremely fast, precise, and reliable motion control to support robotic positioning, clamping, lifting, and tooling adjustment. These systems operate in high-speed, high-temperature, and high-vibration environments, requiring actuators that deliver consistent performance with rapid response times. NUODUN supplied a customized multi-axis actuation solution using worm-gear screw jacks and bevel-gear drives, engineered for automotive automation demands.

Application Details

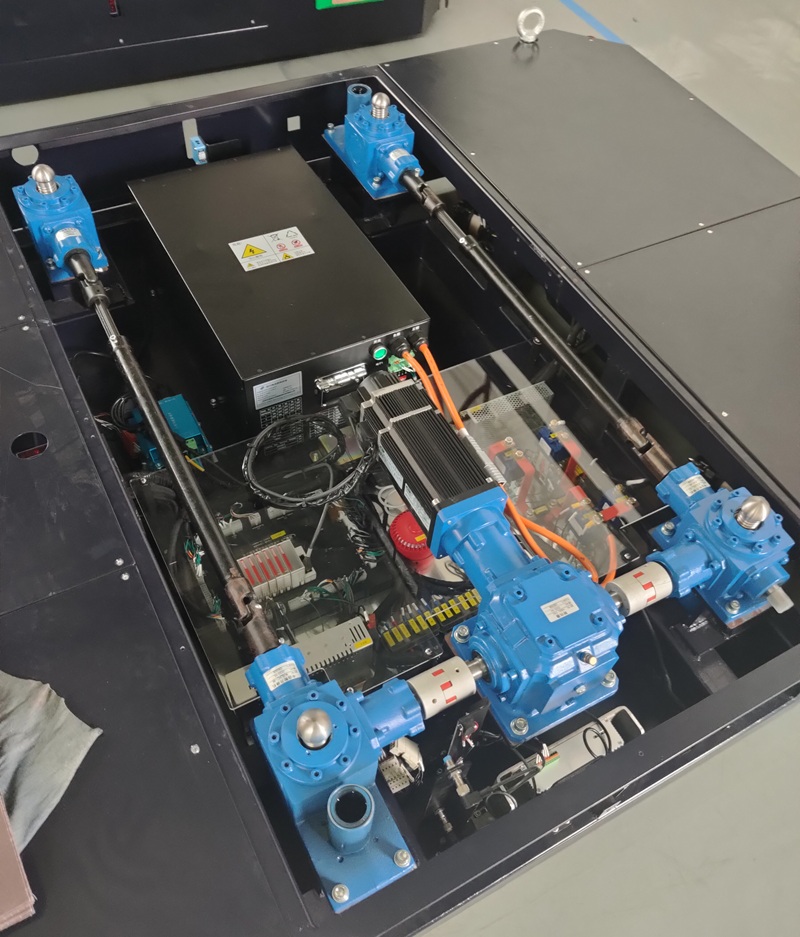

The system shown integrates four NUODUN screw jacks synchronized through bevel-gear drives and coupling shafts, forming a compact lifting and positioning module inside an automated welding/assembly station. This actuator group enables high-speed, high-accuracy movement required for car-body fixtures, welding jigs, and robotic alignment units.

Key Functions Enabled by NUODUN Actuators

• High-speed positioning (≤0.1 s response)
  Ensures rapid adjustment of welding fixtures during automotive cycle times.
• Precise multi-axis synchronization
  Mechanically linked screw jacks maintain parallel movement and stable positioning under dynamic loads.
• High torque and load capacity
  Supports heavy automotive tooling, clamping units, and robot-assisted assemblies.
• Reliable operation in harsh industrial environments
  Withstands metal dust, vibration, temperature changes, and continuous high-frequency actuation.
• Compact, modular design
  Easily integrates into robotic welding stations, AGV platforms, and body-framing equipment.

Why NUODUN Was Selected

• Fast response and precise control required for automotive takt-time cycles
• Long-life mechanical transmission designed for 24/7 robotic production
• Stable performance under welding heat, sparks, and vibration
• High synchronization accuracy for multi-point lifting and alignment
• Customizable actuator configurations for different automation layouts

Customer Benefits

• Increased throughput and reduced cycle time in welding/assembly stations
• Improved accuracy of body-in-white (BIW) positioning
• Lower equipment downtime due to robust, low-maintenance mechanical design
• Enhanced stability for robotic fixtures and tooling platforms
• Seamless integration with PLC, servo systems, and AGV-based automation
