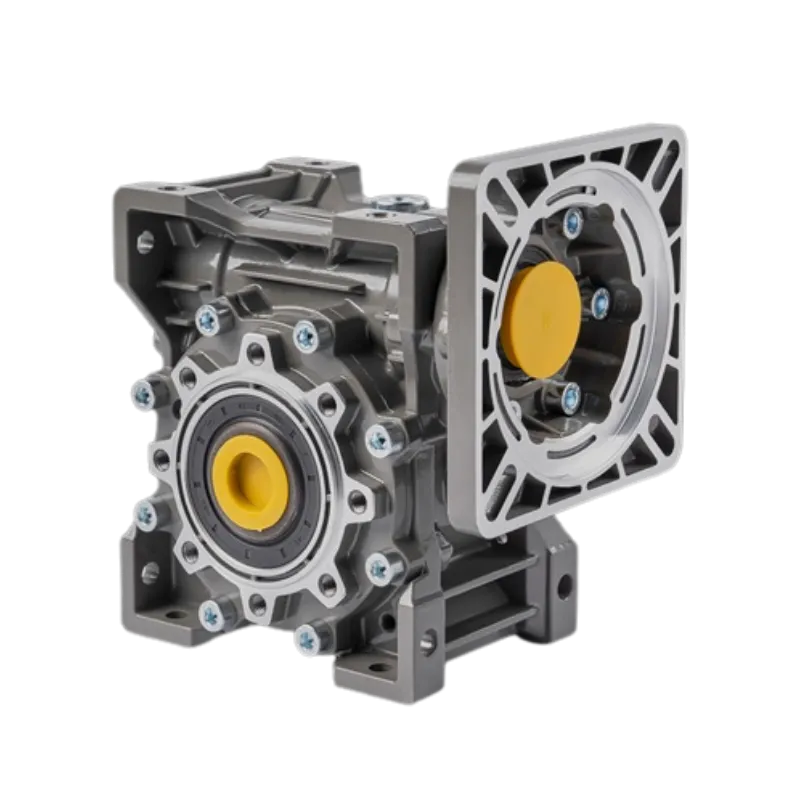

RV Worm Gear Reducer Series

RV series reducer is a commodity with sophistcated design andcontinuous improvement,its mainfeatures are asfollows:

1. Made of high-quality aluminium all oy,light weight andnon -rusting.
2. Large output torque.
3. Smooth running and lownoise.
4. High radiating efficiency.
5.Good-looking appearance,durable service life and small volume.
6.Sutiable for omnibearing installati on.

Download Catalog

Request Quote

NUODUN RV Series Worm Gear Reducer features a robust aluminum-alloy housing, compact structure, and high transmission efficiency. Designed with advanced European technology and continuously optimized, it delivers strong torque output, smooth operation, and excellent heat dissipation. Its square “box-type” design ensures easy installation, attractive appearance, and long service life. The RV series is one of the most widely used worm gear reducers in modern automation and industrial machinery.

Features

High-quality aluminum-alloy housing: lightweight, anti-corrosion, and durable
High torque density with smooth, low-noise transmission
Excellent heat dissipation ensures long-term stable operation
Compact structure with a large reduction ratio and optional self-locking

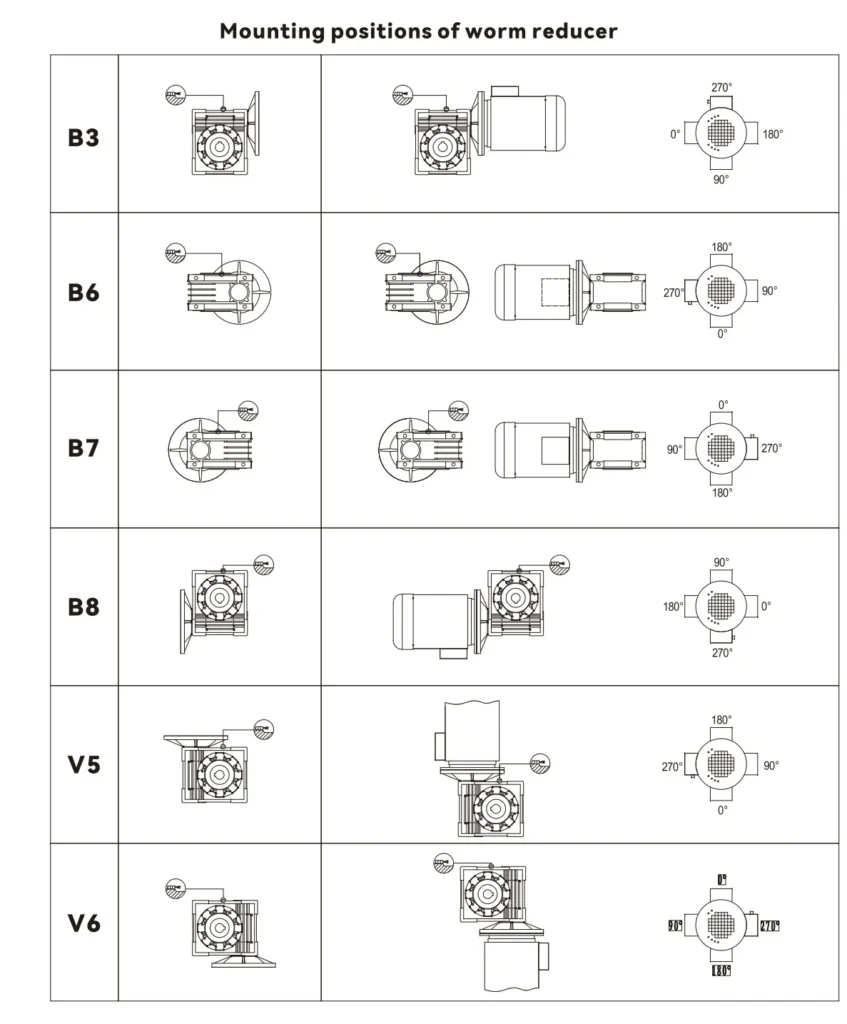

Multiple installation positions and output interface options
Reliable performance with high transmission efficiency

Technical

Gear Ratio: 7.5–100 (Two-stage up to 10,000)
Input Power (n=1400 min⁻¹): 0.06–7.5 kW
Output Torque: 24.6–1192 Nm
Input Type:
- RV Series – IEC motor interface
- RV-Motor – NEMA motor interface
Output Type:
- Hollow shaft
- Solid shaft
- Plug-in type
- Flange mounting

Drawing

Application

Robotic joints and automation systems
CNC machine tools
Solar tracking systems
Packaging and palletizing equipment
Conveyors, sorting systems, light-duty machinery
Food processing & pharmaceutical equipment
